Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T 2009-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

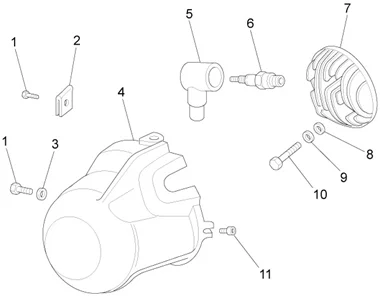

Moteur : 01.12 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/320/Ape_50_2T_2009-2015_01.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
1 |
031086 - VIS S03108600 More informationQuantity required : 2 |
||||||
2 |
008112 - CLIPS S00811200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
3 |
078307 - RONDELLE More informationQuantity required : 2 |
||||||
|
4 |
834295 - CUFFIA DI RAFF More informationQuantity required : 1 |
||||||
|
5 |
244395 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/7/6/img/113276.jpg)
6 |
SPARK PLUG CHAMPION RL78C "PIAGGIO GENUINE PART" 50-220 APE -438049- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/1/0/img/118810.jpg)
7 |
CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 APE -8349804- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
8 |
WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
9 |
016407 - RONDELLE S01640700 More informationQuantity required : 8 |
||||||
|
10 |
015559 - BOULON S01555900 More informationQuantity required : 4 |
||||||
|
11 |
018509 - VIS More informationQuantity required : 5 |
