Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

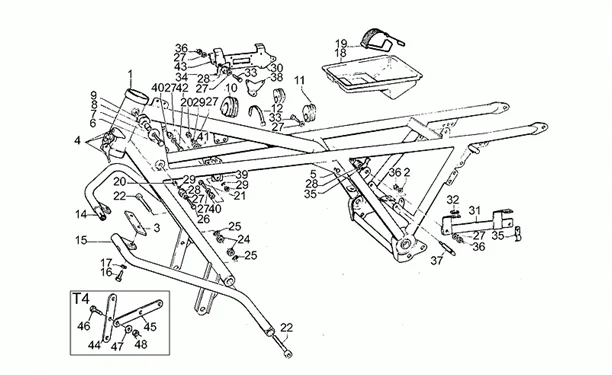

Chassis : 33.27 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.27.PNG)
2 |
GU95000206 - RONDELLE More informationQuantity required : 6 |
||||||
|
3 |
GU17451750 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
5 |
GU93180080 - BOUCHON More informationQuantity required : 4 |
||||||
|
6 |
GU98054425 - VIS M8X25 More informationQuantity required : 2 |
||||||
|
7 |
GU95100255 - RONDELLE More informationQuantity required : 2 |
||||||
|
8 |
GU91180810 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/6/img/129206.jpg)
9 |
GU14103400 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
10 |
GU14107100 - TAMPON More informationQuantity required : 1 |
||||||
|
12 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 3 |
||||||
|
16 |
GU98054420 - VIS M8X20 More informationQuantity required : 2 |
||||||
|
17 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU92602206 - ECROU More informationQuantity required : 4 |
||||||
|
21 |
GU98052325 - VIS More informationQuantity required : 1 |
||||||
|
24 |
GU92602312 - ECROU More informationQuantity required : 2 |
||||||
|
25 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
26 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
27 |
GU95100123 - RONDELLE More informationQuantity required : 8 |
||||||
|
28 |
GU14103800 - TAMPON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/9/img/131889.jpg)
32 |
GU39461600 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
33 |
GU98052325 - VIS More informationQuantity required : 2 |
||||||
|
34 |
GU933011755 - CAVALIER More informationQuantity required : 1 |
||||||
|
35 |
GU93301313 - GUIDE CABLE More informationQuantity required : 3 |
||||||
|
36 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
40 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
41 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
42 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
|
43 |
GU17750400 - PLAQUE More informationQuantity required : 1 |
||||||
|
46 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
|
47 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
48 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
