Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

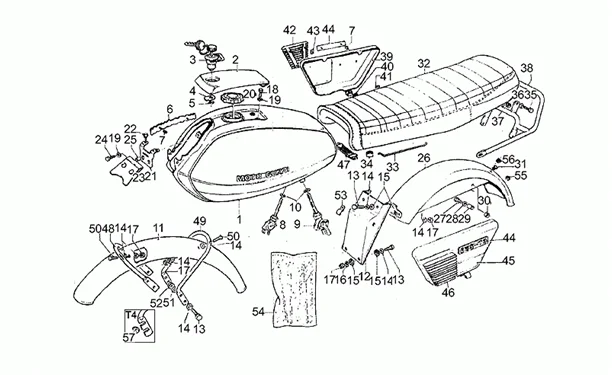

Chassis : 33.05 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.05.PNG)
2 |
GU141040551 - COUVERCLE LAT CULASS More informationQuantity required : 1 |
||||||
|
4 |
GU18105001 - LOQUETEAU More informationQuantity required : 1 |
||||||
|
5 |
GU19104950 - COLLIER More informationQuantity required : 1 |
||||||
|
7 |
GU14105100 - AGRAFE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/7/img/129317.jpg)
9 |
LEFT FUEL TAP "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, T5, 1000 CALIFORNIA, GT, LE-MANS, SP -GU17105461- More informationQuantity required : 1 |
||||||
|
10 |
GU90714103 - JOINT More informationQuantity required : 2 |
||||||
|
12 |
GU14438750 - PARE BOUE AR. More informationQuantity required : 1 |
||||||
|
12 |
GU93180080 - BOUCHON More informationQuantity required : 1 |
||||||
|
13 |
GU98054320 - VIS M6X20 More informationQuantity required : 8 |
||||||
|
13 |
GU96508021 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
14 |
GU95000206 - RONDELLE More informationQuantity required : 16 |
||||||
|
15 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 11 |
||||||
|
16 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
|
17 |
GU92630106 - ECROU M6X1 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.JPG)
19 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 4 |
||||||
|
20 |
GU28103946 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
21 |
GU141022551 - PLAQUE More informationQuantity required : 1 |
||||||
|
22 |
GU93180706 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
23 |
GU141012551 - PLAQUE More informationQuantity required : 1 |
||||||
|
25 |
GU91180608 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
27 |
GU98052440 - VIS More informationQuantity required : 2 |
||||||
|
28 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
30 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/1/img/132571.jpg)
31 |
GU93180105 - BOUCHON More informationQuantity required : 1 |
||||||
|
34 |
GU14103800 - TAMPON More informationQuantity required : 4 |
||||||
|
35 |
GU98054422 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
36 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
37 |
GU92630108 - ECROU More informationQuantity required : 2 |
||||||
|
40 |
GU91551082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
43 |
GU39922200 - CLIPS More informationQuantity required : 8 |
||||||
|
47 |
GU14102600 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
|
52 |
GU92602206 - ECROU More informationQuantity required : 4 |
||||||
|
53 |
GU93301313 - GUIDE CABLE More informationQuantity required : 1 |
||||||
|
55 |
GU91551102 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
56 |
GU91551081 - CAOUTCHOUC More informationQuantity required : 2 |
