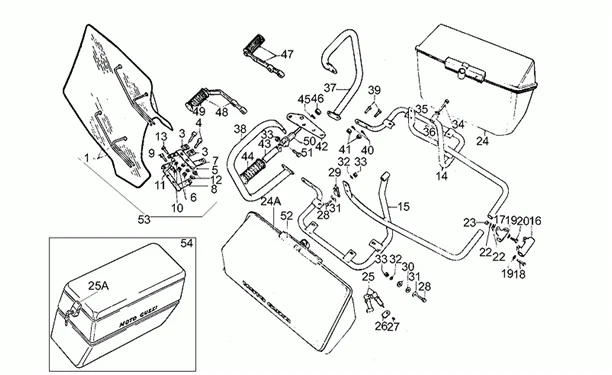

Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985 MOTO-GUZZI

Chassis : 33.02 SACOCHES RIGIDES
Sacoches rigides
Search

1
P2R reference P2R reference
Maker reference Maker reference GU185772515

3
P2R reference P2R reference
Maker reference Maker reference GU185784515

4
P2R reference P2R reference
Maker reference Maker reference GU980744255

GU95021108 - RONDELLE ELASTIQUE

5
P2R reference P2R reference 132693
Maker reference Maker reference GU95021108

GU95021108 - RONDELLE ELASTIQUE

More information

Quantity required : 4

GU92601208 - ECROU

6
P2R reference P2R reference 132460
Maker reference Maker reference GU92601208

GU92601208 - ECROU

More information

Quantity required : 4

7
P2R reference P2R reference
Maker reference Maker reference GU185068515

8
P2R reference P2R reference
Maker reference Maker reference GU185069515

Vis

9
P2R reference P2R reference
Maker reference Maker reference GU98052450

Vis

GU95000208 - RONDELLE

10
P2R reference P2R reference 132652
Maker reference Maker reference GU95000208

GU95000208 - RONDELLE

More information

Quantity required : 4

ENTRETOISE

11
P2R reference P2R reference
Maker reference Maker reference GU91180911

ENTRETOISE

12
P2R reference P2R reference
Maker reference Maker reference GU951003175

GU98052440 - VIS

13
P2R reference P2R reference 132870
Maker reference Maker reference GU98052440

GU98052440 - VIS

More information

Quantity required : 2

14
P2R reference P2R reference
Maker reference Maker reference GU184850405

15
P2R reference P2R reference
Maker reference Maker reference GU184865405

GU18487740 - SANS-SOUDURE

16
P2R reference P2R reference 129435
Maker reference Maker reference GU18487740

GU18487740 - SANS-SOUDURE

More information

Quantity required : 1

PLAQUE

17
P2R reference P2R reference
Maker reference Maker reference GU18488740

PLAQUE

GU98054325 - VIS

18
P2R reference P2R reference 132890
Maker reference Maker reference GU98054325

GU98054325 - VIS

More information

Quantity required : 2

18
P2R reference P2R reference
Maker reference Maker reference GU980643255

GU95000206 - RONDELLE

19
P2R reference P2R reference 132651
Maker reference Maker reference GU95000206

GU95000206 - RONDELLE

More information

Quantity required : 3

19
P2R reference P2R reference
Maker reference Maker reference GU950062065

GU98084316 - VIS M6X16

20
P2R reference P2R reference 132928
Maker reference Maker reference GU98084316

GU98084316 - VIS M6X16

More information

Quantity required : 1

20
P2R reference P2R reference
Maker reference Maker reference GU980643165

GU93110060 - CAOUTCHOUC

21
P2R reference P2R reference 132566
Maker reference Maker reference GU93110060

GU93110060 - CAOUTCHOUC

More information

Quantity required : 1

Rondelle évent.

22
P2R reference P2R reference
Maker reference Maker reference GU95021106

Rondelle évent.

GU92602206 - ECROU

23
P2R reference P2R reference 132464
Maker reference Maker reference GU92602206

GU92602206 - ECROU

More information

Quantity required : 1

24
P2R reference P2R reference
Maker reference Maker reference GU174825455

24
P2R reference P2R reference
Maker reference Maker reference GU1748254515

24
P2R reference P2R reference
Maker reference Maker reference GU174857455

24
P2R reference P2R reference
Maker reference Maker reference GU1748574515

24
P2R reference P2R reference
Maker reference Maker reference GU184825575

SERRURE AVEC CLES

25
P2R reference P2R reference
Maker reference Maker reference GU18484060

SERRURE AVEC CLES

25
P2R reference P2R reference
Maker reference Maker reference GU194840905

26
P2R reference P2R reference
Maker reference Maker reference GU184888605

AGRAFE

27
P2R reference P2R reference
Maker reference Maker reference GU18488960

AGRAFE

GU98054320 - VIS M6X20

28
P2R reference P2R reference 132889
Maker reference Maker reference GU98054320

GU98054320 - VIS M6X20

More information

Quantity required : 12

29
P2R reference P2R reference
Maker reference Maker reference GU104882005

GU93110060 - CAOUTCHOUC

30
P2R reference P2R reference 132566
Maker reference Maker reference GU93110060

GU93110060 - CAOUTCHOUC

More information

Quantity required : 16

GU95100141 - RONDELLE 6,5X20X2

31
P2R reference P2R reference 132713
Maker reference Maker reference GU95100141

GU95100141 - RONDELLE 6,5X20X2

More information

Quantity required : 12

Rondelle évent.

32
P2R reference P2R reference
Maker reference Maker reference GU95021106

Rondelle évent.

GU92602206 - ECROU

33
P2R reference P2R reference 132464
Maker reference Maker reference GU92602206

GU92602206 - ECROU

More information

Quantity required : 14

34
P2R reference P2R reference
Maker reference Maker reference GU980523655

GU95000208 - RONDELLE

35
P2R reference P2R reference 132652
Maker reference Maker reference GU95000208

GU95000208 - RONDELLE

More information

Quantity required : 2

GU92630108 - ECROU

36
P2R reference P2R reference 132501
Maker reference Maker reference GU92630108

GU92630108 - ECROU

More information

Quantity required : 2

PARE-CHOC MOTEUR

37
P2R reference P2R reference
Maker reference Maker reference GU17457920

PARE-CHOC MOTEUR

PARE-CHOC

37
P2R reference P2R reference
Maker reference Maker reference GU18458250

PARE-CHOC

PARE-CHOC

38
P2R reference P2R reference
Maker reference Maker reference GU17458620

PARE-CHOC

GU18458850 - PARE-CHOCS AR G

38
P2R reference P2R reference 129434
Maker reference Maker reference GU18458850

GU18458850 - PARE-CHOCS AR G

More information

Quantity required : 1

GU98054425 - VIS M8X25

39
P2R reference P2R reference 164714
Maker reference Maker reference GU98054425

GU98054425 - VIS M8X25

More information

Quantity required : 4

GU95021108 - RONDELLE ELASTIQUE

40
P2R reference P2R reference 132693
Maker reference Maker reference GU95021108

GU95021108 - RONDELLE ELASTIQUE

More information

Quantity required : 4

GU92602208 - ECROU M8X1,25

41
P2R reference P2R reference 132465
Maker reference Maker reference GU92602208

GU92602208 - ECROU M8X1,25

More information

Quantity required : 4

PLAQUE

42
P2R reference P2R reference
Maker reference Maker reference GU18423950

PLAQUE

43
P2R reference P2R reference
Maker reference Maker reference GU1444135015

GU14443200 - CAOUTCHOUC REP-PIEDS

44
P2R reference P2R reference 129257
Maker reference Maker reference GU14443200

GU14443200 - CAOUTCHOUC REP-PIEDS

More information

Quantity required : 2

44
P2R reference P2R reference
Maker reference Maker reference GU174587205

GU95022112 - RONDELLE EVENT.

45
P2R reference P2R reference 132698
Maker reference Maker reference GU95022112

GU95022112 - RONDELLE EVENT.

More information

Quantity required : 2

GU95021108 - RONDELLE ELASTIQUE

45
P2R reference P2R reference 132693
Maker reference Maker reference GU95021108

GU95021108 - RONDELLE ELASTIQUE

More information

Quantity required : 4

GU92602312 - ECROU

46
P2R reference P2R reference 132470
Maker reference Maker reference GU92602312

GU92602312 - ECROU

More information

Quantity required : 2

GU92602208 - ECROU M8X1,25

46
P2R reference P2R reference 132465
Maker reference Maker reference GU92602208

GU92602208 - ECROU M8X1,25

More information

Quantity required : 4

47
P2R reference P2R reference
Maker reference Maker reference GU184436805

48
P2R reference P2R reference
Maker reference Maker reference GU1844608015

GU14443200 - CAOUTCHOUC REP-PIEDS

49
P2R reference P2R reference 129257
Maker reference Maker reference GU14443200

GU14443200 - CAOUTCHOUC REP-PIEDS

More information

Quantity required : 2

SUPPORT

50
P2R reference P2R reference
Maker reference Maker reference GU18445450

SUPPORT

GU98052325 - VIS

51
P2R reference P2R reference 132862
Maker reference Maker reference GU98052325

GU98052325 - VIS

More information

Quantity required : 2

52
P2R reference P2R reference
Maker reference Maker reference GU184899505

53
P2R reference P2R reference
Maker reference Maker reference GU185753515

54
P2R reference P2R reference
Maker reference Maker reference GU184800405
