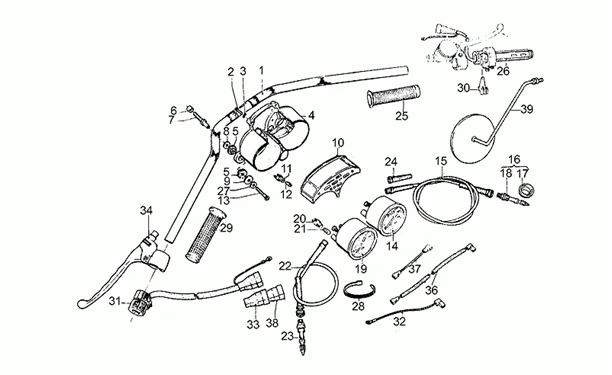

Chassis : 33.18 GUIDON - COMMANDES
Guidon - commandes
Search
GUIDON

1
P2R reference P2R reference
Maker reference Maker reference GU17600300

GUIDON

1
P2R reference P2R reference
Maker reference Maker reference GU186003015

2
P2R reference P2R reference
Maker reference Maker reference GU988302255

GU95021105 - RONDELLE EVENT.

3
P2R reference P2R reference 132692
Maker reference Maker reference GU95021105

GU95021105 - RONDELLE EVENT.

More information

Quantity required : 2

GU17501570 - TABLEAU DE BORD

4
P2R reference P2R reference 129350
Maker reference Maker reference GU17501570

GU17501570 - TABLEAU DE BORD

More information

Quantity required : 1

Silent block

5
P2R reference P2R reference
Maker reference Maker reference GU14502250

Silent block

ENTRETOISE

6
P2R reference P2R reference
Maker reference Maker reference GU91180911

ENTRETOISE

VIS

7
P2R reference P2R reference
Maker reference Maker reference GU17500750

VIS

GU95100337 - RONDELLE

8
P2R reference P2R reference 132727
Maker reference Maker reference GU95100337

GU95100337 - RONDELLE

More information

Quantity required : 2

GU95090142 - RONDELLE

9
P2R reference P2R reference 165094
Maker reference Maker reference GU95090142

GU95090142 - RONDELLE

More information

Quantity required : 2

Support

10
P2R reference P2R reference
Maker reference Maker reference GU14769155

Support

Porte-ampoule

11
P2R reference P2R reference
Maker reference Maker reference GU14768651

Porte-ampoule

LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634-

12
P2R reference P2R reference 65760
Maker reference Maker reference 164634

LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634-

More information

Quantity required : 8

Vis

13
P2R reference P2R reference
Maker reference Maker reference GU98270627

Vis

GU14761570 - COMPTEUR KILOMETRIQUE MHP

14
P2R reference P2R reference 129287
Maker reference Maker reference GU14761570

GU14761570 - COMPTEUR KILOMETRIQUE MHP

More information

Quantity required : 1

COMPTEUR MILES

14
P2R reference P2R reference
Maker reference Maker reference GU18762401

COMPTEUR MILES

GU12760400 - TRANSMISSION TACHYMETRE

15
P2R reference P2R reference 129148
Maker reference Maker reference GU12760400

GU12760400 - TRANSMISSION TACHYMETRE

More information

Quantity required : 1

GU14762510 - RENVOI Z5/11

16
P2R reference P2R reference 164604
Maker reference Maker reference GU14762510

GU14762510 - RENVOI Z5/11

More information

Quantity required : 1

17
P2R reference P2R reference
Maker reference Maker reference GU147661105

18
P2R reference P2R reference
Maker reference Maker reference GU127633005

19
P2R reference P2R reference
Maker reference Maker reference GU147672015

20
P2R reference P2R reference
Maker reference Maker reference GU147686505

294131 - AMPOULE 12V 3W

21
P2R reference P2R reference 66269
Maker reference Maker reference 294131

294131 - AMPOULE 12V 3W

More information

Quantity required : 2

GU19768100 - TRANSMISSION COMPTE-TOURS

22
P2R reference P2R reference 129704
Maker reference Maker reference GU19768100

GU19768100 - TRANSMISSION COMPTE-TOURS

More information

Quantity required : 1

GU14769200 - RENVOI Z=14

23
P2R reference P2R reference 165097
Maker reference Maker reference GU14769200

GU14769200 - RENVOI Z=14

More information

Quantity required : 1

GU17762200 - GAINE

24
P2R reference P2R reference 129391
Maker reference Maker reference GU17762200

GU17762200 - GAINE

More information

Quantity required : 2

Poignée dr.

25
P2R reference P2R reference
Maker reference Maker reference GU14603500

Poignée dr.

26
P2R reference P2R reference
Maker reference Maker reference GU146034555

26
P2R reference P2R reference
Maker reference Maker reference GU186034610015

GU18577850 - RONDELLE

27
P2R reference P2R reference 129442
Maker reference Maker reference GU18577850

GU18577850 - RONDELLE

More information

Quantity required : 2

GU49609601 - COLLIER 2,4X92

28
P2R reference P2R reference 131912
Maker reference Maker reference GU49609601

GU49609601 - COLLIER 2,4X92

More information

Quantity required : 2

GU14603000 - POIGNEE GC.

29
P2R reference P2R reference 129264
Maker reference Maker reference GU14603000

GU14603000 - POIGNEE GC.

More information

Quantity required : 1

30
P2R reference P2R reference
Maker reference Maker reference GU656044005

Déviateur feux gche

31
P2R reference P2R reference
Maker reference Maker reference GU18738062

Déviateur feux gche

GU18759550 - FILS DE MASSE

32
P2R reference P2R reference 129445
Maker reference Maker reference GU18759550

GU18759550 - FILS DE MASSE

More information

Quantity required : 1

GU35755780 - CAPUCHON

33
P2R reference P2R reference 165100
Maker reference Maker reference GU35755780

GU35755780 - CAPUCHON

More information

Quantity required : 1

GU17605570 - COMMANDE LEVIER EMBRAYAGE

34
P2R reference P2R reference 129355
Maker reference Maker reference GU17605570

GU17605570 - COMMANDE LEVIER EMBRAYAGE

More information

Quantity required : 1

GU19605501 - COMMANDE LEVIER EMBRAYAGE

34
P2R reference P2R reference 165091
Maker reference Maker reference GU19605501

GU19605501 - COMMANDE LEVIER EMBRAYAGE

More information

Quantity required : 1

36
P2R reference P2R reference
Maker reference Maker reference GU177247505

37
P2R reference P2R reference
Maker reference Maker reference GU177246505

GU61740551 - CONNECTEUR

38
P2R reference P2R reference 165099
Maker reference Maker reference GU61740551

GU61740551 - CONNECTEUR

More information

Quantity required : 1

39
P2R reference P2R reference
Maker reference Maker reference GU147698505
