Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

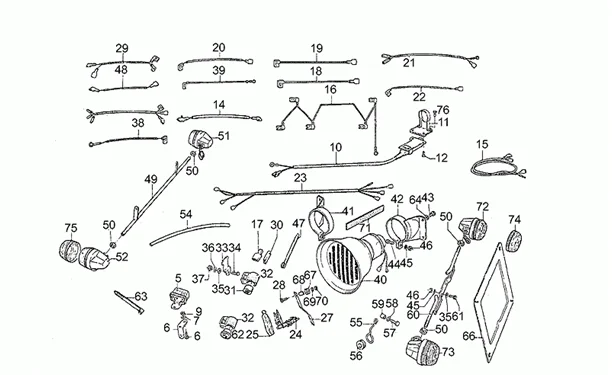

Chassis : 33.10 DISP.ELECTR.850T3-POLIZIA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.10.PNG)
5 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
7 |
GU95000208 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
GU98054416 - VIS M8X16 More informationQuantity required : 1 |
||||||
|
9 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
17 |
GU93400863 - CONNEXIONE FASTON More informationQuantity required : 1 |
||||||
|
28 |
GU98054320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
32 |
GU17751200 - BLOC More informationQuantity required : 2 |
||||||
|
33 |
GU17750400 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
34 |
GU98084316 - VIS M6X16 More informationQuantity required : 1 |
||||||
|
35 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
37 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
38 |
GU18759550 - FILS DE MASSE More informationQuantity required : 1 |
||||||
|
40 |
GU28743745 - SIRENE More informationQuantity required : 2 |
||||||
|
43 |
GU98054416 - VIS M8X16 More informationQuantity required : 4 |
||||||
|
44 |
GU98054318 - VIS More informationQuantity required : 2 |
||||||
|
46 |
GU92602206 - ECROU More informationQuantity required : 4 |
||||||
|
47 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 2 |
||||||
|
50 |
GU92602411 - ECROU More informationQuantity required : 4 |
||||||
|
56 |
GU91551120 - BAGUE More informationQuantity required : 1 |
||||||
|
57 |
GU98052565 - VIS More informationQuantity required : 2 |
||||||
|
58 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 2 |
||||||
|
61 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
62 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 2 |
||||||
|
63 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 4 |
||||||
|
64 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
66 |
GU10474600 - PLAQUE PORT.PL.DE PO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
67 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
68 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
69 |
GU95100139 - RONDELLE More informationQuantity required : 2 |
||||||
|
70 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
76 |
GU98200306 - VIS More informationQuantity required : 2 |
