Vehicle Exploded View - MOTO-GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

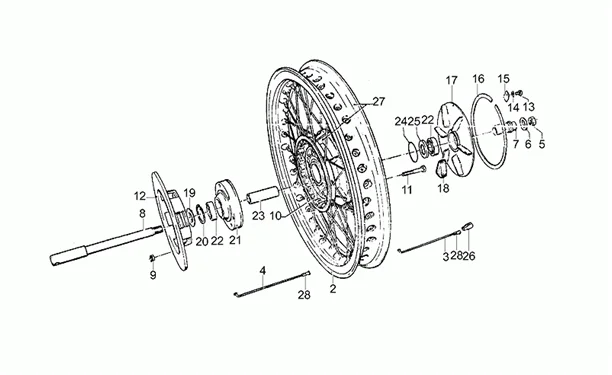

Chassis : 33.24 ROUE AR RAYONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.24.PNG)
2 |
|
||||||
|
3 |
GU28631133 - RAYON AVEC NIPLE More informationQuantity required : 20 |
||||||
|
4 |
GU28611633 - RAYON LONG More informationQuantity required : 20 |
||||||
|
5 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
|
6 |
GU14634400 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
GU17634150 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
8 |
AXE DE ROUE AR. |
||||||
|
9 |
GU92630508 - ECROU More informationQuantity required : 6 |
||||||
|
10 |
|
||||||
|
11 |
GU98052445 - VIS More informationQuantity required : 6 |
||||||
|
12 |
|
||||||
|
13 |
GU98054312 - VIS More informationQuantity required : 1 |
||||||
|
14 |
Rondelle évent. |
||||||
|
15 |
GU17335950 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
16 |
GU14335303 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
17 |
GU14335203 - DISQUE PIECE EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
18 |
GU01336800 - PARASTRAPPI More informationQuantity required : 12 |
||||||
|
19 |
Entretoise |
||||||
|
20 |
GU90272047 - BAGUE SEEGER 47X50,5 More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
22 |
ROULEMENT DE ROUE (20X47X14) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- More informationQuantity required : 2 |
||||||
|
23 |
ENTRETOISE |
||||||
|
24 |
GU90706490 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
25 |
GU17633550 - RONDELLE More informationQuantity required : 1 |
||||||
|
26 |
GU12616101 - CONTREPOIDS 15 GR. More informationQuantity required : 1 |
||||||
|
26 |
GU12616102 - CONTREPOIDS 20 GR. More informationQuantity required : 1 |
||||||
|
26 |
GU12616103 - CONTREPOIDS 30 GR. More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/4/2/img/13024_2.jpg)
28 |
GU28611733 - NIPPLE More informationQuantity required : 40 |
