Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 4T 3V ie ABS E5 2020 (EMEA) VESPA

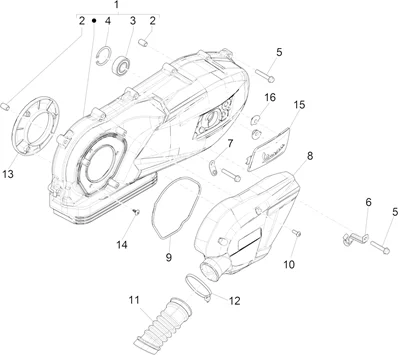

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
TRANSMISSION COVER "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA 2016>, SPRINT 2016> -1A0069246-

1
P2R reference P2R reference 139645
Maker reference Maker reference 1A0069246

TRANSMISSION COVER "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA 2016>, SPRINT 2016> -1A0069246-

More information

Quantity required : 1
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

2
P2R reference P2R reference 72696
Maker reference Maker reference B015956

CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956-

More information

Quantity required : 2
BEARING (15.35.11) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -4789853-

3
P2R reference P2R reference 66571
Maker reference Maker reference 4789853

BEARING (15.35.11) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -4789853-

More information

Quantity required : 1
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635-

4
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635-

More information

Quantity required : 1
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

5
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838-

More information

Quantity required : 9
1C001520 - COLLIER

6
P2R reference P2R reference 127521
Maker reference Maker reference 1C001520

1C001520 - COLLIER

More information

Quantity required : 1
844964 - COLLIER

7
P2R reference P2R reference 69338
Maker reference Maker reference 844964

844964 - COLLIER

More information

Quantity required : 1
1A006851 - COUVERCLE

8
P2R reference P2R reference 139641
Maker reference Maker reference 1A006851

1A006851 - COUVERCLE

More information

Quantity required : 1
1A006923 - JOINT

9
P2R reference P2R reference 139644
Maker reference Maker reference 1A006923

1A006923 - JOINT

More information

Quantity required : 1
B016455 - VIS

10
P2R reference P2R reference 72707
Maker reference Maker reference B016455

B016455 - VIS

More information

Quantity required : 3
1B001009 - MANCHON²

11
P2R reference P2R reference 75785
Maker reference Maker reference 1B001009

1B001009 - MANCHON²

More information

Quantity required : 1
257134 - COLLIER

12
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 1
B018051 - ENTRETOISE

13
P2R reference P2R reference 94800
Maker reference Maker reference B018051

B018051 - ENTRETOISE

More information

Quantity required : 1
B018060 - VIS M5X10

14
P2R reference P2R reference 94802
Maker reference Maker reference B018060

B018060 - VIS M5X10

More information

Quantity required : 3
1A007578 - COUVERCLE

15
P2R reference P2R reference 142326
Maker reference Maker reference 1A007578

1A007578 - COUVERCLE

More information

Quantity required : 1
RETAINER BUFFER FOR TRANSMISSION CASING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -871458-

16
P2R reference P2R reference 70378
Maker reference Maker reference 871458

RETAINER BUFFER FOR TRANSMISSION CASING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -871458-

More information

Quantity required : 2
