Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 4T 3V ie ABS E5 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

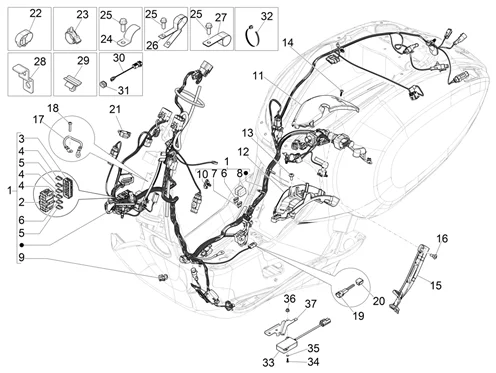

Circuit électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1001/Vespa_Primavera_125_4T_3V_ie_ABS_E5_2020_(EMEA)_06.08.png)
1 |
1D003481 - WIRING HARNESS More informationQuantity required : 1 |
|||||||||
|
1 |
1D003210 - WIRING HARNESS More informationQuantity required : 1 |
|||||||||
|
2 |
1D000563 - BOUCHON More informationQuantity required : 1 |
|||||||||
|
3 |
1D000563 - BOUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.JPG)
4 |
293256 - FUSIBLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
5 |
252945 - FUSIBLE 7,5A More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
6 |
292507 - FUSIBLE 10A More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/3/0/img/110630.JPG)
7 |
580561 - FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/1/img/66241.JPG)
8 |
290404 - COUVERCLE More informationQuantity required : 2 |
|||||||||
|
9 |
1D001827 - COLLIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.JPG)
10 |
1D001143 - COLLIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/4/8/img/91348.jpg)
11 |
BATTERY COVER "PIAGGIO GENUINE PART" PIAGGIO 50-125 PRIMAVERA 2013>, SPRINT 2014> -673622- More informationQuantity required : 1 |
|||||||||
|
12 |
1B011269 - BOîTIER PORTE-CIRCUIT More informationQuantity required : 1 |
|||||||||
|
12 |
1B008725 - ELECTR BOX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.JPG)
13 |
CM179301 - VIS More informationQuantity required : 2 |
|||||||||
|
13 |
667643 - BANDE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701- More informationQuantity required : 1 |
|||||||||
|
15 |
1B008424 - ELECTRIC SYSTEM GUARD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
16 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202- More informationQuantity required : 1 |
|||||||||
|
17 |
581310 - PROTECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
18 |
015597 - VIS S01559700 More informationQuantity required : 1 |
|||||||||
|
19 |
1D000167 - CONNECTEUR More informationQuantity required : 1 |
|||||||||
|
20 |
1D001098 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
21 |
CM006903 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/9/img/72909.JPG)
22 |
CM006908 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
23 |
CM006910 - RESSORT More informationQuantity required : 1 |
|||||||||
|
24 |
1D000071 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
25 |
B016777 - VIS More informationQuantity required : 3 |
|||||||||
|
26 |
1D001828 - PATTE More informationQuantity required : 1 |
|||||||||
|
27 |
1D000081 - PATTE More informationQuantity required : 1 |
|||||||||
|
28 |
680036 - PATTES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
29 |
639560 - RESSORT More informationQuantity required : 1 |
|||||||||
|
30 |
1D003323 - USB SOCKET More informationQuantity required : 1 |
|||||||||
|
31 |
1B001591 - PASSE CABLES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
32 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 10 |
|||||||||
|
33 |
2D000305 - CENTRALE ELECTRONIQUE More informationQuantity required : 1 |
|||||||||
|
34 |
615795 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
35 |
013836 - RONDELLE S01383600 More informationQuantity required : 1 |
|||||||||
|
36 |
B005195 - ECROU More informationQuantity required : 1 |
|||||||||
|
37 |
1B005401 - PATTE More informationQuantity required : 1 |
|||||||||
