Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 4T 3V ie ABS E5 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

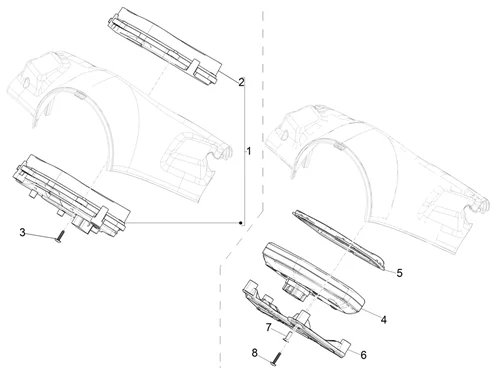

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1001/Vespa_Primavera_125_4T_3V_ie_ABS_E5_2020_(EMEA)_03.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/2/3/4/img/140234.JPG)
1 |
1D001496R - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/1/0/img/109210.jpg)
2 |
DASHBOARD GLASS "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1D000573- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701- More informationQuantity required : 4 |
||||||
4 |
1D003678 - METER GROUP More informationQuantity required : 1 |
||||||
|
5 |
1B004452 - ENCADREMENT More informationQuantity required : 1 |
||||||
|
6 |
1B004309 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/1/6/img/68516.JPG)
7 |
825079 - VIS More informationQuantity required : 4 |
||||||
|
8 |
857140 - VIS More informationQuantity required : 4 |
