Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 4T 3V ie ABS E5 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

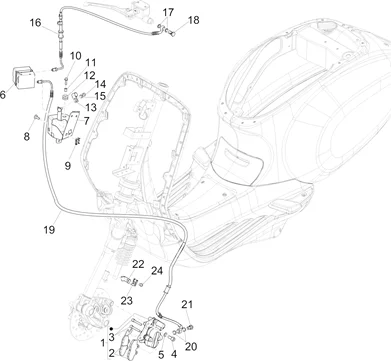

Instalation du freins - transmisisons : 05.02 TUYAUS DU FREINS - ETRIERS DE FREIN (ABS)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1001/Vespa_Primavera_125_4T_3V_ie_ABS_E5_2020_(EMEA)_05.02.png)
1 |
CM294403 - ETRIER DE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
2 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125 X-EVO FRONT, X8 FRONT, X9 FRONT, 125-300 VESPA GTS FRONT, 400 X-EVO FRONT+REAR, 125 FLY FRONT/GILERA 800 GP REAR/APRILIA 854 SRV REAR, 125-300 SR-MAX FRONT+REAR (PAIR) (HENG-TONG) -647078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/9/6/img/68396.jpg)
3 |
BRAKE CALIPER SUPPORT PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -666139 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/8/img/78328.jpg)
4 |
319532 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
6 |
1C002557 - CENTRALE ABS More informationQuantity required : 1 |
||||||
|
7 |
1C000431 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
8 |
CM179301 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
10 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856 More informationQuantity required : 3 |
||||||
|
11 |
1C000870 - ENTRETOISE More informationQuantity required : 6 |
||||||
|
12 |
939278 - TAMPON More informationQuantity required : 3 |
||||||
|
13 |
675510 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
14 |
006976 - RONDELLE S00697600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
15 |
020106 - ECROU S02010600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/3/8/6/img/177386.jpg)
16 |
1C004099R - TUYAU MAITRE-CYLINDRE DE FREIN D-UNITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
17 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
18 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/8/0/img/76080.jpg)
19 |
1C001023R - TUYAU More informationQuantity required : 1 |
||||||
|
20 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
|
21 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 1 |
||||||
|
22 |
1C000585 - COLLIER More informationQuantity required : 1 |
||||||
|
23 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
24 |
274369 - BOULON More informationQuantity required : 1 |
