Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 4T 3V ie ABS E5 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

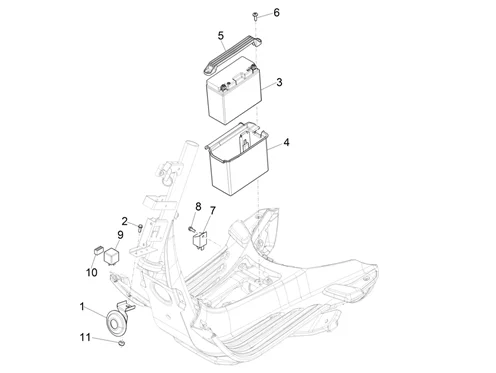

Circuit électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1001/Vespa_Primavera_125_4T_3V_ie_ABS_E5_2020_(EMEA)_06.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/2/img/67172.jpg)
1 |
HORN "PIAGGIO GENUINE PART" 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -58034R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
2 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
3 |
584662 - BATTERIE YUASA YTX7L-BS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/6/9/4/8/img/136948.jpg)
3 |
BATTERY 12V 6 AH BTX7L-BS "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, 50 VESPA LX, VESPA S, PRIMAVERA, 125 MEDLEY, VESPA GTS/APRILIA 125 RS, 50 SR (LG114XL70XH131) -1R000317- More informationQuantity required : 1 |
||||||
4 |
1B004967 - SUPPORT DE BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/7/img/91567.jpg)
5 |
674076 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
6 |
CM179302 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
7 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R- More informationQuantity required : 1 |
||||||
|
8 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
9 |
643341 - RELAIS DE DEMARREUR More informationQuantity required : 1 |
||||||
|
10 |
642317 - SOUTIEN DES INDICATEURS DE DIRECTION More informationQuantity required : 1 |
||||||
|
11 |
709116 - ECROU More informationQuantity required : 1 |
