Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

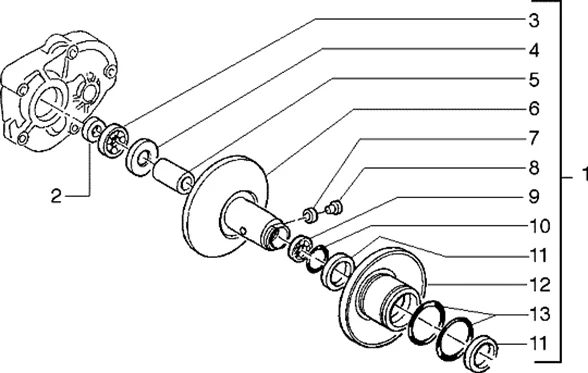

Moteur : T13 DEMI-POULIE ENTRAINÉE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/7/img/66597.jpg)
1 |
COMPLETE DRIVEN PULLEY "PIAGGIO GENUINE PART" 125 LIBERTY, LX4/VESPA ET4 -4805775- More informationQuantity required : 1 |
||||||
1 |
435317 - BAGUE More informationQuantity required : 1 |
||||||
|
2 |
435993 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
3 |
285007 - ROULEMENT More informationQuantity required : 1 |
||||||
|
4 |
285017 - ECROU More informationQuantity required : 1 |
||||||
|
5 |
82503R - TAMBOUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
6 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519- More informationQuantity required : 1 |
||||||
|
6 |
4780745 - MOYEU More informationQuantity required : 1 |
||||||
|
7 |
285358 - JEU ROULEAU POULIE SFERA/ZIP More informationQuantity required : 3 |
||||||
|
9 |
285007 - ROULEMENT More informationQuantity required : 1 |
||||||
|
10 |
289386 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/2/img/66392.JPG)
11 |
431089 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/2/img/66382.jpg)
13 |
VARIATOR PULLEY GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -430585- More informationQuantity required : 2 |
