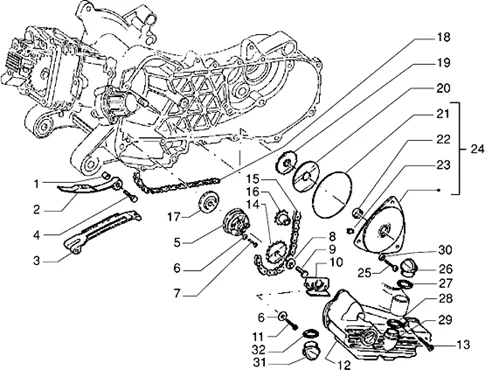

Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005

	P2R reference	66550
	Maker reference	478247
	Replaced by référence 187400

478247 - ENTRETOISE

	P2R reference	68764
	Maker reference	828561

828561 - SUPPORT

	P2R reference
	Maker reference	436260

PATIN

	P2R reference	70995
	Maker reference	969877

TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -969877

	P2R reference	65640
	Maker reference	0310895

031089 - BOULON S03108900

	P2R reference	66497
	Maker reference	436643

436643 - POMPE HUILE

	P2R reference	63840
	Maker reference	0069755

006975 - RONDELLE S00697500

	P2R reference	68759
	Maker reference	828493

SCREW - FOR WATER PUMP HOUSING "PIAGGIO GENUINE PART" 125 X-EVO, X9, BEVERLY, VESPA GTS/GILERA 125 NEXUS, RUNNER -828493 -

	P2R reference	66501
	Maker reference	436695

436695 - CONE ELASTIQUE 6X20

	P2R reference	72706
	Maker reference	B016426

B016426 - VIS TEF M6X14

	P2R reference	66506
	Maker reference	436810

436810 - PROTECTION

	P2R reference	109024
	Maker reference	1A003111

1A003111 - VIS M5X10

	P2R reference	109024
	Maker reference	0185755

1A003111 - VIS M5X10

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	72720
	Maker reference	414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	66182
	Maker reference	287913

287913 - COURONNE

	P2R reference	66454
	Maker reference	434447

434447 - CHAINE

	P2R reference	69068
	Maker reference	833495

OIL PUMP PINION "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50CC 4 STROKE -833495

	P2R reference	66504
	Maker reference	436751

436751 - JOINT

	P2R reference	66488
	Maker reference	436246

TIMING CHAIN "PIAGGIO GENUINE PART" 125 LIBERTY, SFERA, HEXAGON, ET4 1998>2003/APRILIA 125 MOJITO 1999>2001 -436246

	P2R reference	66453
	Maker reference	434442

434442 - PIGNON

	P2R reference	66380
	Maker reference	430535

430535 - RONDELLE

	P2R reference	69332
	Maker reference	844888

WATER PUMP DRIVE GEAR GASKET "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, ZIP 4 STROKE, VESPA LX 4 STROKE, VESPA-S 4 STROKE -844888-

	P2R reference	66184
	Maker reference	2879633

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGO - COMMON FOR SCOOTER 50CC 4 STROKE -2879633

	P2R reference	66447
	Maker reference	434345

434345 - TAMPON.

	P2R reference	66555
	Maker reference	478324

TIMING SYSTEM COVER (WITH GASKET) "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, VESPA PRIMAVERA 4 STROKE, VESPA LX 4 STROKE -478324-

	P2R reference	127167
	Maker reference	1A003109

1A003109 - VIS M5X16

	P2R reference	69279
	Maker reference	843364

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -843364-

	P2R reference	66588
	Maker reference	479985

479985 - JOINT

	P2R reference	158280
	Maker reference	1A009397

1A009397 - JOINT "OR"

	P2R reference	158280
	Maker reference	479986

1A009397 - JOINT "OR"

	P2R reference	78540
	Maker reference	430536

430536 - INDICATEUR DIRECTION

	P2R reference	63837
	Maker reference	0069655

006965 - RONDELLE

	P2R reference	66500
	Maker reference	436692

436692 - BOUCHON

	P2R reference	66191
	Maker reference	288474

OIL FILTER GASKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO -288474
