Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

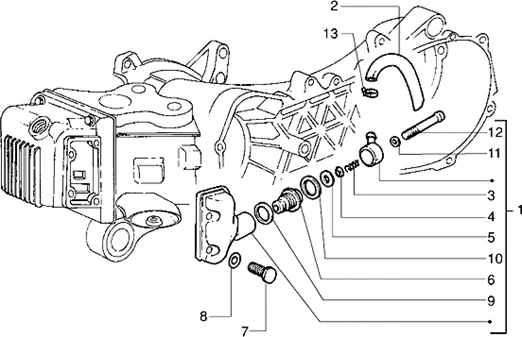

Moteur : T8 SOUPAPE REINFLARD HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T8.PNG)
1 |
4348935 - RENIFLARD CPLT More informationQuantity required : 1 |
||||||
|
2 |
480358 - TUBE More informationQuantity required : 1 |
||||||
|
3 |
430771 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
430770 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
7 |
031091 - VIS More informationQuantity required : 4 |
||||||
|
8 |
016335 - RONDELLE More informationQuantity required : 4 |
||||||
|
10 |
430772 - JOINT More informationQuantity required : 1 |
||||||
|
11 |
224568 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/2/img/66452.JPG)
12 |
434429 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
13 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 2 |
All the exploded views of this vehicle
-
