Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

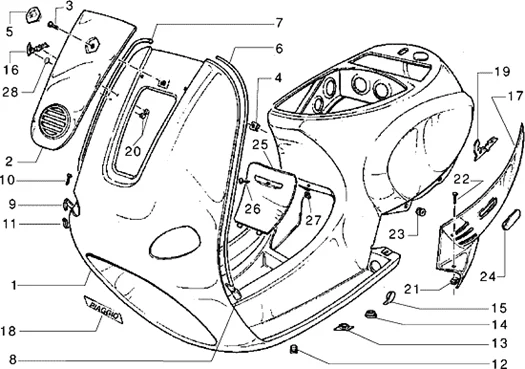

Châssis : T27 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T27.PNG)
1 |
5764550018 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
1 |
5764556066 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
1 |
57645501 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
1 |
57645560D1 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
1 |
57645560B2 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
1 |
5764556090 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
2 |
4722775 - CACHE CENTRALE 734 More informationQuantity required : 1 |
|||||||||
|
2 |
4722255 - CACHE CENTRALE 949 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/8/5/1/img/78851.jpg)
2 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" 50 ET2, 125 ET4 RAW TO BE PAINT -4722005- More informationQuantity required : 1 |
|||||||||
|
2 |
4722225 - CACHE DIRECTION AV ET2/4 BLEU 216 More informationQuantity required : 1 |
|||||||||
|
2 |
47220050D1 - CACHE DIRECTION AV ET2/4 BLEU 251 More informationQuantity required : 1 |
|||||||||
|
2 |
47220050B2 - CACHE DIRECTION AV ET2/4 PERLE 693 More informationQuantity required : 1 |
|||||||||
|
2 |
4722005095 - CACHE DIRECTION AV ET2/4 GRIS 729 More informationQuantity required : 1 |
|||||||||
|
2 |
4722005090 - CACHE DIRECTION AV ET2/4 NOIR BRILL 94 More informationQuantity required : 1 |
|||||||||
|
2 |
4722005060 - CACHE DIRECTION AV ET2/4 VERT 336 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
4 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/3/2/img/77832.jpg)
5 |
EMBLEM - "PIAGGIO GENUINE PART" 125-250-500 X9, BEVERLY, 125-250 X8 -295486- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/7/6/img/80176.jpg)
6 |
573001 - BORDURE TABLIER G More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/7/7/img/80177.JPG)
7 |
573002 - BORDURE TABLIER D More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/0/img/78090.jpg)
8 |
CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/1/img/78091.jpg)
9 |
CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
10 |
SCREW - -008432- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
11 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/6/img/78066.jpg)
12 |
299558 - BOUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/5/img/78065.jpg)
13 |
299557 - BOUCHON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/7/img/78067.jpg)
14 |
299559 - BOUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/5/1/img/78051.jpg)
15 |
299250 - BOUCHON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/0/img/89130.jpg)
16 |
DECAL "VESPA" "PIAGGIO GENUINE PART" 50-125 VESPA LX 2006>, PRIMAVERA 2012>, VESPA-S 2007>, SPRINT 2014>, 125 VESPA GTS 2007>, PX 2014> -656219- More informationQuantity required : 1 |
|||||||||
|
17 |
8216005 - FLANC GAUCHE BRUT More informationQuantity required : 1 |
|||||||||
|
17 |
8216005087 - CARRENAGE GAUCHE 724 More informationQuantity required : 1 |
|||||||||
|
17 |
8216005066 - FLANC G 913 More informationQuantity required : 1 |
|||||||||
|
17 |
8216005059 - FLANC AR G MAR 131 More informationQuantity required : 1 |
|||||||||
|
17 |
8216005018 - FLANC GAUCHE BRUT More informationQuantity required : 1 |
|||||||||
|
17 |
8215255 - FLANC DRT 949 More informationQuantity required : 1 |
|||||||||
|
17 |
8216005095 - CARENAGE GAUC More informationQuantity required : 1 |
|||||||||
|
17 |
8216005 - FLANC GAUCHE BRUT More informationQuantity required : 1 |
|||||||||
|
17 |
82160050D1 - FLANC G 251 More informationQuantity required : 1 |
|||||||||
|
17 |
82160050F1 - FLANC G 523 More informationQuantity required : 1 |
|||||||||
|
17 |
8216195 - CARTER LAT G V 331 More informationQuantity required : 1 |
|||||||||
|
17 |
8216205 - CARENAGE GAUC 848 More informationQuantity required : 1 |
|||||||||
|
17 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125 ET4 BLUE 2016 -8216225- More informationQuantity required : 1 |
|||||||||
|
17 |
8216235 - CARENAGE More informationQuantity required : 1 |
|||||||||
|
17 |
8216255 - CARENAGE ORANGE More informationQuantity required : 1 |
|||||||||
|
17 |
8215235 - CARENAGE More informationQuantity required : 1 |
|||||||||
|
17 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" PIAGGIO 125 ET4 BLUE 2016 -8215225- More informationQuantity required : 1 |
|||||||||
|
17 |
297282000L - CARENAGE BLEU M99 More informationQuantity required : 1 |
|||||||||
|
17 |
2972820018 - FLANC GAUCHE 208 More informationQuantity required : 1 |
|||||||||
|
17 |
2972820022 - FLANC GAUCHE 216 More informationQuantity required : 1 |
|||||||||
|
17 |
2972820090 - FLANC GAUCHE 94 More informationQuantity required : 1 |
|||||||||
|
17 |
29728200D1 - FLANC G BLEU 251 More informationQuantity required : 1 |
|||||||||
|
17 |
297283000D - CARENAGE ET2 DROITE GRIS More informationQuantity required : 1 |
|||||||||
|
17 |
297283000L - CARTER DX More informationQuantity required : 1 |
|||||||||
|
17 |
2972830018 - FLANC DROIT 208 More informationQuantity required : 1 |
|||||||||
|
17 |
2972830090 - FLANC DROIT 94 More informationQuantity required : 1 |
|||||||||
|
17 |
8215195 - CARTER LAT DR V 311 More informationQuantity required : 1 |
|||||||||
|
17 |
8215005 - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
17 |
8215005066 - FLANC DRT 913 More informationQuantity required : 1 |
|||||||||
|
17 |
8215005 - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
17 |
8215005 - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
17 |
29728300D1 - FLANC D BLEU 251 More informationQuantity required : 1 |
|||||||||
|
17 |
297282000D - CARENAGE G GRIS M99 More informationQuantity required : 1 |
|||||||||
|
18 |
573092000B - MONOGRAMME (PIAGGIO) More informationQuantity required : 1 |
|||||||||
|
18 |
DECAL- ON FRONT FAIRING "PIAGGIO GENUINE PART" VESPA 125 ET4 -5730920020- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/7/9/img/94879.jpg)
18 |
CM000402000N - DECALQ NOIR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/8/0/img/94880.jpg)
18 |
CM0004020036 - MONOG PIAGGIO CHAMPA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/3/1/img/89131.jpg)
19 |
DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/6/img/63846.jpg)
20 |
008108 - PLAQUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
21 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
23 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/3/img/139413.jpg)
24 |
SIDE REFLECTOR- "PIAGGIO GENUINE PART" 50-125 ZIP, VESPA LX, LIBERTY, 125-250-400-500 MP3 -58231R5- More informationQuantity required : 2 |
|||||||||
|
25 |
4721775 - TRAPPE VISITE BL 734 More informationQuantity required : 1 |
|||||||||
|
25 |
4721235 - COUVERCLE AVANT ET2 329 VERT More informationQuantity required : 1 |
|||||||||
|
25 |
4721225 - TRAPPE DE VISITE ET2/4 BLEU 216 More informationQuantity required : 1 |
|||||||||
|
25 |
4721195 - TRAPPE DE VISITE ET2/4 VERT OLIVE 331 More informationQuantity required : 1 |
|||||||||
|
25 |
SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PARTS" VESPA 50 ET2, 125 ET4 BRUT A PEINDRE -4721005- More informationQuantity required : 1 |
|||||||||
|
25 |
47210050F1 - PORTE BAT 523 More informationQuantity required : 1 |
|||||||||
|
25 |
47210050B2 - TRAPPE DE VISITE ET2/4 PERLE 693 More informationQuantity required : 1 |
|||||||||
|
25 |
4721005095 - TRAPPE DE VISITE ET2/4 GRIS 729 More informationQuantity required : 1 |
|||||||||
|
25 |
4721005090 - TRAPPE DE VISITE ET2/4 NOIR BRILLANT 94 More informationQuantity required : 1 |
|||||||||
|
25 |
4721005059 - TRAPPE DE VISITE ET2/4 MARRON 131 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
26 |
015911 - VIS S01591100 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
27 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408- More informationQuantity required : 1 |
|||||||||
|
28 |
271710 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
