Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

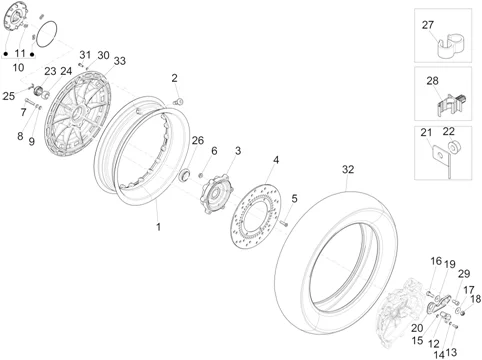

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/207/Vespa_946_125_4T_3V_ABS_ARMANI_2015_04.12.PNG)
1 |
1C0017915 - JANTE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
2 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/1/img/67361.jpg)
3 |
REAR DISC HUB "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 FLY 2012>2013/GILERA 125 RUNNER 2005> -598715- More informationQuantity required : 1 |
||||||
|
4 |
668716 - DISQUE FREIN More informationQuantity required : 1 |
||||||
|
5 |
668249 - BOULON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
6 |
597565 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
7 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
8 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
9 |
003058 - RONDELLE S00305800 More informationQuantity required : 5 |
||||||
|
10 |
1C001945 - COUVRE MOYEU ROUE More informationQuantity required : 1 |
||||||
|
11 |
1C000743 - PNEU 130/70-12" FIRM MICHELIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.JPG)
12 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
12 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
13 |
880285 - VIS More informationQuantity required : 1 |
||||||
|
14 |
1C000475 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/3/8/img/90538.JPG)
15 |
669282 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
16 |
031088 - VIS S03108800 More informationQuantity required : 1 |
||||||
|
17 |
976674 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
18 |
709116 - ECROU More informationQuantity required : 1 |
||||||
|
19 |
268304 - RONDELLE More informationQuantity required : 1 |
||||||
|
20 |
669235 - ADAPTATEUR More informationQuantity required : 1 |
||||||
|
21 |
680263 - PATTES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
22 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.JPG)
23 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
23 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
24 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
25 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 - More informationQuantity required : 1 |
||||||
|
26 |
668481 - ENTRETOISE ROUE ARR. More informationQuantity required : 1 |
||||||
|
27 |
667156 - COLLIER More informationQuantity required : 1 |
||||||
|
28 |
667643 - BANDE More informationQuantity required : 1 |
||||||
|
29 |
239687 - VIS More informationQuantity required : 1 |
||||||
|
30 |
003055 - RONDELLE More informationQuantity required : 20 |
||||||
|
31 |
669057 - BOULON More informationQuantity required : 20 |
||||||
|
32 |
1C000410 - JOINT SPIE More informationQuantity required : 3 |
||||||
|
33 |
1C0017885 - MOYEU ROUE More informationQuantity required : 1 |
