Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

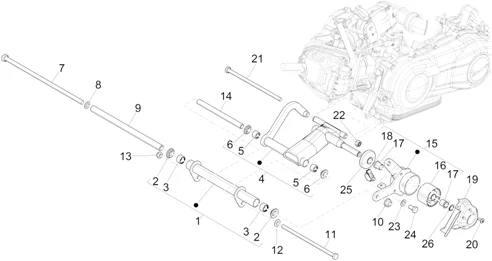

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/207/Vespa_946_125_4T_3V_ABS_ARMANI_2015_04.01.PNG)
1 |
668632 - BRAS OSCILLANT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/5/5/img/82455.jpg)
2 |
598917 - JOINT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
3 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY -600161- More informationQuantity required : 2 |
|||||||||
|
4 |
668635 - BRAS OSCILLANT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/5/img/67335.jpg)
5 |
GASKET FOR SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER /MAXISCOOTER -597317- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/4/img/67004.jpg)
6 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 125-250-300 -56127R- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/1/9/img/82319.jpg)
7 |
SCREW - FOR SWING ARM "PIAGGIO GENUINE PARTS" 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-250-300 VESPA GTS -597914- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/4/6/img/77146.JPG)
8 |
266845 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
9 |
1C000439 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
10 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 1 |
|||||||||
|
11 |
598237 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
12 |
178790 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
13 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/0/2/img/76002.JPG)
14 |
1C000440 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
15 |
668728 - PATTES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
16 |
SILENBLOC - ENGINE SUPPORT "PIAGGIO GENUINE PART" 125-250 MP3 2007>, 125 X8 2004>, X9 2003>, X-EVO 2007>, X10 2012>, VESPA GTS 2007>/GILERA 125-250 NEXUS 2007>, RUNNER 2005>/APRILIA 125 SR-MAX 2011> -272750- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
17 |
BUSH FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 LEADER -273460- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
18 |
CM006903 - RESSORT More informationQuantity required : 1 |
|||||||||
|
19 |
669251 - COUVERCLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.JPG)
20 |
CM179301 - VIS More informationQuantity required : 2 |
|||||||||
|
21 |
598237 - VIS More informationQuantity required : 1 |
|||||||||
|
22 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
23 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/4/img/67354.jpg)
24 |
BOLT "PIAGGIO GENUINE PART" -597893- More informationQuantity required : 1 |
|||||||||
|
25 |
668514 - SILENBLOC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/2/8/2/img/149282.JPG)
25 |
1C002624 - SILENBLOC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
26 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416- More informationQuantity required : 1 |
|||||||||
