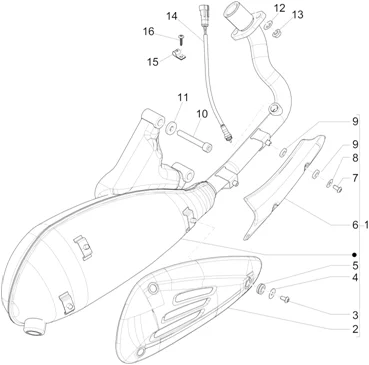

Vehicle Exploded View - VESPA VESPA 946 125 4T 3V ABS ARMANI 2015 VESPA

Moteur : 01.42 SILENCIEUX
Silencieux
Search
1A0048725 - SILENCIEUX

1
P2R reference P2R reference 127267
Maker reference Maker reference 1A0048725

1A0048725 - SILENCIEUX

More information

Quantity required : 1
1A0048735 - PLAQUE DE POT

2
P2R reference P2R reference 127268
Maker reference Maker reference 1A0048735

1A0048735 - PLAQUE DE POT

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014-

3
P2R reference P2R reference 68173
Maker reference Maker reference 651014

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014-

More information

Quantity required : 3
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526-

4
P2R reference P2R reference 68676
Maker reference Maker reference 827526

EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526-

More information

Quantity required : 3
841782 - PASSE CABLE

5
P2R reference P2R reference 69204
Maker reference Maker reference 841782

841782 - PASSE CABLE

More information

Quantity required : 3
B018287 - PLAQUE DE POT

6
P2R reference P2R reference 94819
Maker reference Maker reference B018287

B018287 - PLAQUE DE POT

More information

Quantity required : 1
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

7
P2R reference P2R reference 71934
Maker reference Maker reference 1C001493

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

More information

Quantity required : 2
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

7
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267-

More information

Quantity required : 2
1A000244 - RONDELLE

8
P2R reference P2R reference 75294
Maker reference Maker reference 1A000244

1A000244 - RONDELLE

More information

Quantity required : 2
876879 - ENTRETOISE

9
P2R reference P2R reference 70637
Maker reference Maker reference 876879

876879 - ENTRETOISE

More information

Quantity required : 4
872997 - VIS M8X55

10
P2R reference P2R reference 70457
Maker reference Maker reference 872997

872997 - VIS M8X55

More information

Quantity required : 2
709012 - RONDELLE

11
P2R reference P2R reference 68488
Maker reference Maker reference 709012

709012 - RONDELLE

More information

Quantity required : 2
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

12
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

More information

Quantity required : 2
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947-

13
P2R reference P2R reference 66509
Maker reference Maker reference 436947

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947-

More information

Quantity required : 2
LAMBDA SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC ( 3 VALVES INJECTED ENGINE) -1D0003745-

14
P2R reference P2R reference 65855
Maker reference Maker reference 1D0003745

LAMBDA SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC ( 3 VALVES INJECTED ENGINE) -1D0003745-

More information

Quantity required : 1
643451 - COLLIER.

15
P2R reference P2R reference 86608
Maker reference Maker reference 643451

643451 - COLLIER.

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793-

16
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793-

More information

Quantity required : 1
