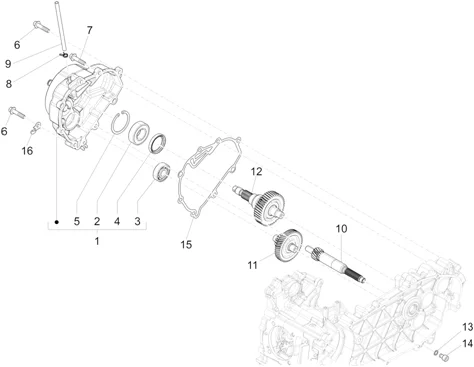

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/207/Vespa_946_125_4T_3V_ABS_ARMANI_2015_01.25.PNG)
1 |
B0160435 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/3/img/139393.jpg)
2 |
TRANSMISSION BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A005376R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/7/img/92847.jpg)
3 |
83026R - ROULEMENT 15X42X13 More informationQuantity required : 1 |
||||||
|
4 |
B015440 - BAGUE D'ETANCHEITE 38X50X7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/5/img/68825.jpg)
5 |
CIRCLIP -829206- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/2/img/109872.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623- More informationQuantity required : 3 |
||||||
|
7 |
1A000769 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
8 |
CM002908 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
B018670 - TUBE More informationQuantity required : 1 |
||||||
|
10 |
B017168 - ARBRE DE POULIE More informationQuantity required : 1 |
||||||
|
11 |
B0167545 - ARBRE TRNSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/5/1/3/img/149513.JPG)
12 |
REAR WHEEL AXLE "PIAGGIO GENUINE PART" 125 FLY 3V 2012>2013 -B0167566- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
13 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
14 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/9/7/img/94697.JPG)
15 |
B016456 - JOINT More informationQuantity required : 1 |
||||||
|
16 |
1A000482 - COLLIER More informationQuantity required : 1 |
