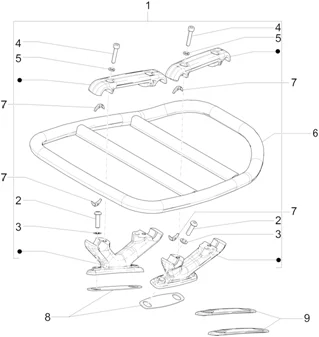

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/207/Vespa_946_125_4T_3V_ABS_ARMANI_2015_02.44.PNG)
1 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" VESPA 946 -1B003006- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/8/img/69098.jpg)
2 |
834038 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
3 |
006966 - RONDELLE S00696600 More informationQuantity required : 4 |
||||||
|
4 |
1B000692 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
5 |
016405 - RONDELLE S01640500 More informationQuantity required : 4 |
||||||
|
6 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" VESPA 946 -1B0022885- More informationQuantity required : 1 |
||||||
|
7 |
1B000006 - JOINT More informationQuantity required : 8 |
||||||
|
8 |
1B000007 - JOINT More informationQuantity required : 2 |
||||||
|
9 |
1B003005 - BOUCHON More informationQuantity required : 2 |
