Vehicle Exploded View - MOTO-GUZZI V35 350 V50 Acc Elettronica 350-500 1977-1980
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

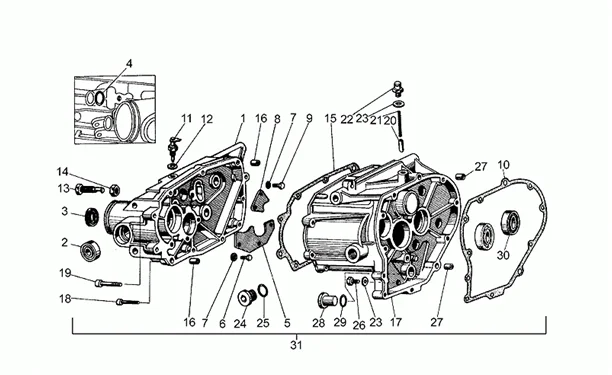

Moteur : 34.20 CARTER DE BOÎTE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/525/V35_V50_Acc_Elettronica_350-500_1977-1980_34.20.PNG)
2 |
GU92204215 - ROULEMENT 15X35X11 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/1/8/img/132218.JPG)
4 |
GU90706140 - JOINT TORIQUE 13,95X2,92 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
6 |
GU98084314 - VIS M6X14 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
7 |
AP8152105 - RONDELLE More informationQuantity required : 5 |
||||||
|
8 |
GU19235800 - PLAQUE More informationQuantity required : 1 |
||||||
|
9 |
GU98084314 - VIS M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/8/img/129548.jpg)
11 |
SENSOR - NEUTRAL "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU19207220- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
12 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200- More informationQuantity required : 1 |
||||||
|
13 |
GU19237800 - VIS M12X1,25 More informationQuantity required : 1 |
||||||
|
14 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/2/img/99292.jpg)
15 |
GEARBOX COVER GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65 -887006- More informationQuantity required : 1 |
||||||
|
18 |
GU98680330 - VIS TCEI M6X30 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
19 |
GU98680435 - VIS TCEI M8X35 More informationQuantity required : 4 |
||||||
|
20 |
GU55234700 - ENCLIQUETAGE More informationQuantity required : 1 |
||||||
|
21 |
GU94321067 - RETOUR LEVIER DEMARRAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/4/8/7/img/126487.jpg)
22 |
FILL CAP FOR GEARBOX OR TRANSMISSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, V30, V50, V65 -GU19206501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
23 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V65 1982> -GU10528900- More informationQuantity required : 2 |
||||||
|
24 |
OIL PLUG "PIAGGIO GENUINE PART" COMMON FOR ALL MOTO-GUZZI RANGE -GU12022600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
25 |
O'RING GASKET (20,24X2,62) FOR CLUTCH SHAFT Ø20,24X2,62 "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -GU90706203- More informationQuantity required : 1 |
||||||
|
26 |
GU95980214 - BOUCHON NIVEAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/4/img/132384.jpg)
30 |
GEARBOX BEARING (20X42X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201120- More informationQuantity required : 1 |
