Vehicle Exploded View - MOTO-GUZZI V35 350 V50 Acc Elettronica 350-500 1977-1980
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

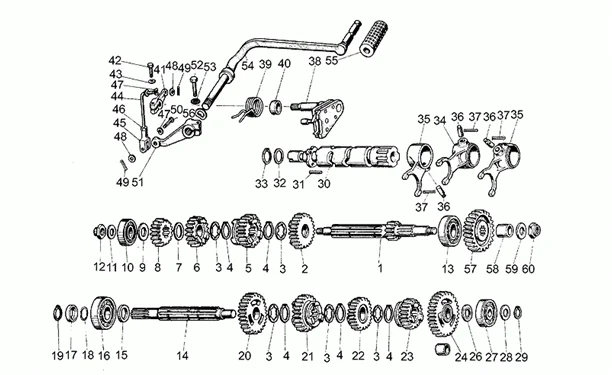

Moteur : 34.13 BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/525/V35_V50_Acc_Elettronica_350-500_1977-1980_34.13.PNG)
11 |
GU39238100 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
|
12 |
GU10054100 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/8/img/132388.jpg)
13 |
BEARING (20X47X14) FOR TIMING SYSTEM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201220- More informationQuantity required : 1 |
||||||
|
15 |
GU19212900 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
16 |
BEARING (20X47X14) FOR TIMING SYSTEM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201220- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/3/img/132223.jpg)
18 |
GASKET RING- BEVEL GEAR (18,77X1,78) "PIAGGIO GENUINE PART" MOTO GUZZI -GU90706188- More informationQuantity required : 1 |
||||||
|
19 |
GU90271121 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
20 |
GU19214501 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
28 |
GU39239300 - RONDELLE More informationQuantity required : 1 |
||||||
|
29 |
GU90271115 - JONC D ARRET More informationQuantity required : 1 |
||||||
|
31 |
GU19234600 - TIGE More informationQuantity required : 4 |
||||||
|
32 |
GU19355300 - CALE 1 MM More informationQuantity required : 1 |
||||||
|
33 |
GU90271020 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/6/img/130136.jpg)
39 |
PRIMARY GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI RANGE -GU28238261- More informationQuantity required : 1 |
||||||
|
39 |
GU61238200 - RESSORT More informationQuantity required : 1 |
||||||
|
40 |
GU20208520 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
40 |
GU91182010 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
41 |
GU19258220 - LEVIER COMM.PRESEL. More informationQuantity required : 1 |
||||||
|
42 |
GU98052325 - VIS More informationQuantity required : 1 |
||||||
|
45 |
GU12626800 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
46 |
GU92602206 - ECROU More informationQuantity required : 1 |
||||||
|
47 |
GU95129110 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
48 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.JPG)
49 |
GU95500222 - GOUPILLE More informationQuantity required : 2 |
||||||
|
50 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
51 |
GU19256900 - LEVIER More informationQuantity required : 1 |
||||||
|
52 |
GU98052325 - VIS More informationQuantity required : 1 |
||||||
|
54 |
GU19250900 - PEDALE DE SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
55 |
GU14251001 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
56 |
GU95129260 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
59 |
GU39238100 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
|
60 |
GU10054100 - ECROU More informationQuantity required : 1 |
