Vehicle Exploded View - MOTO-GUZZI V35 350 V50 Acc Elettronica 350-500 1977-1980
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

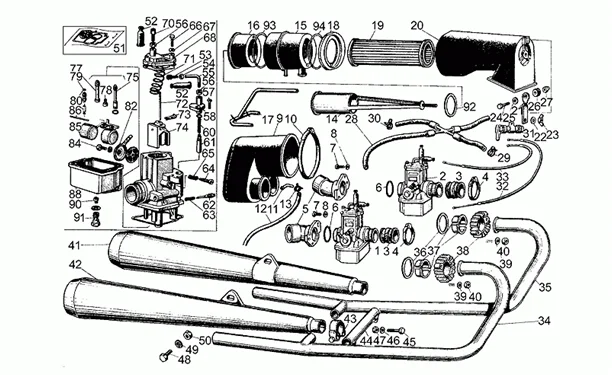

Chassis : 33.12 ASPIRATION-ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/525/V35_V50_Acc_Elettronica_350-500_1977-1980_33.12.PNG)
5 |
GU19114400 - CORNET D ADMISSION More informationQuantity required : 2 |
||||||
|
7 |
GU98054214 - VIS More informationQuantity required : 4 |
||||||
|
8 |
GU95004205 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
GU19114300 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
10 |
GU93305092 - COLLIER More informationQuantity required : 1 |
||||||
|
11 |
GU17114650 - RACCORD COUDE More informationQuantity required : 1 |
||||||
|
12 |
GU95985532 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
13 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
||||||
|
14 |
GU19155775 - SUPPORT FILTRE More informationQuantity required : 1 |
||||||
|
16 |
GU19156900 - ELEMENT AR More informationQuantity required : 1 |
||||||
|
18 |
GU17113450 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/9/img/129319.JPG)
19 |
GU17113651 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
20 |
GU17114050 - CHAMBRE DE FILTRE A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
22 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 1 |
||||||
|
23 |
GU92670305 - ECROU More informationQuantity required : 1 |
||||||
|
25 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
26 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
27 |
GU92630105 - ECROU More informationQuantity required : 1 |
||||||
|
28 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
29 |
CM002907 - COLLIER More informationQuantity required : 2 |
||||||
|
30 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
|
31 |
GU23133100 - STARTER More informationQuantity required : 1 |
||||||
|
32 |
GU19133500 - CABLE DE STARTER More informationQuantity required : 1 |
||||||
|
36 |
GU61025200 - JOINT More informationQuantity required : 2 |
||||||
|
37 |
GU61025400 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
39 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
40 |
GU92701062 - ECROU More informationQuantity required : 4 |
||||||
|
43 |
GU61126920 - COLLIER More informationQuantity required : 2 |
||||||
|
46 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
47 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
48 |
GU98054522 - VIS M10X22 More informationQuantity required : 2 |
||||||
|
49 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
50 |
GU92602410 - ECROU More informationQuantity required : 2 |
||||||
|
51 |
GU17939950 - KIT JOINTS CARBURATEUR More informationQuantity required : 2 |
||||||
|
52 |
GU13937000 - CAPUCHON More informationQuantity required : 4 |
||||||
|
53 |
GU53937200 - VIS TENDEUR DE FIL More informationQuantity required : 2 |
||||||
|
54 |
GU19938880 - ECROU More informationQuantity required : 2 |
||||||
|
55 |
GU49938900 - TUYAU More informationQuantity required : 2 |
||||||
|
57 |
GU13937900 - VIS More informationQuantity required : 2 |
||||||
|
58 |
GU17937450 - COUVERCLE SOUPAPE More informationQuantity required : 2 |
||||||
|
61 |
GU13937800 - SOUPAPE DE DEMARRAGE More informationQuantity required : 2 |
||||||
|
63 |
GU13936300 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
65 |
152608 - VIS More informationQuantity required : 2 |
||||||
|
67 |
GU13932900 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/5/img/129155.jpg)
70 |
GU12937200 - VIS TENDEUR DE FIL More informationQuantity required : 2 |
||||||
|
71 |
GU53937100 - RESSORT More informationQuantity required : 2 |
||||||
|
72 |
GU19934900 - POINTEAU CONIQUE More informationQuantity required : 2 |
||||||
|
75 |
GU19936000 - JET DEMARRAGE 60 More informationQuantity required : 2 |
||||||
|
77 |
GU19935500 - GICLEUR 260AH More informationQuantity required : 2 |
||||||
|
78 |
GU19935900 - GICLEUR DE RALENTI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/4/2/img/129742.jpg)
80 |
GU19934600 - VANNE POINTEAU More informationQuantity required : 2 |
||||||
|
82 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE More informationQuantity required : 2 |
||||||
|
85 |
GU61934300 - FLOTTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
86 |
GU13933100 - AXE DE FLOTTEUR More informationQuantity required : 2 |
||||||
|
90 |
GU19935700 - GICLEUR PRINCIPAL More informationQuantity required : 2 |
||||||
|
91 |
GU10933700 - BOUCHON More informationQuantity required : 2 |
||||||
|
92 |
GU19113900 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/7/img/132247.jpg)
94 |
GU90706552 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
