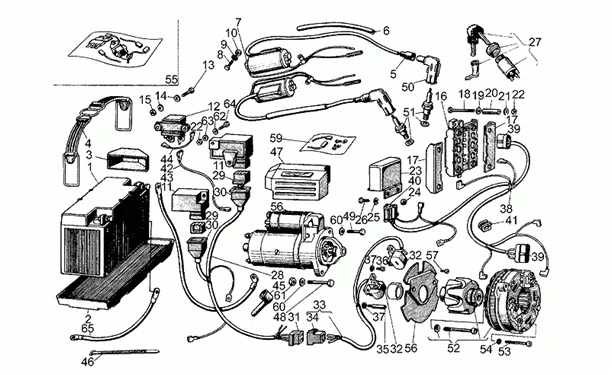

Chassis : 33.05 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/525/V35_V50_Acc_Elettronica_350-500_1977-1980_33.05.PNG)
2 |
GU14707000 - PLATEAU DE BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
GU14705350 - COIN BATTERIE More informationQuantity required : 1 |
||||||
|
4 |
GU19704800 - ETRIER COLLIER BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
5 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/5/5/img/131255.jpg)
7 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU31716560- More informationQuantity required : 2 |
||||||
|
8 |
GU98052220 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.JPG)
9 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 4 |
||||||
|
10 |
GU92602205 - ECROU More informationQuantity required : 4 |
||||||
|
12 |
GU19732500 - RELAIS DEMARRAGE More informationQuantity required : 1 |
||||||
|
13 |
GU98054212 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
14 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 4 |
||||||
|
15 |
GU92602205 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
GU98052245 - VIS More informationQuantity required : 4 |
||||||
|
19 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
20 |
GU91180627 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
21 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 4 |
||||||
|
22 |
GU92602205 - ECROU More informationQuantity required : 8 |
||||||
|
24 |
GU91180605 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
25 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 2 |
||||||
|
26 |
GU98054214 - VIS More informationQuantity required : 2 |
||||||
|
37 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 4 |
||||||
|
39 |
GU61712500 - CONNECTEUR 3 VIE More informationQuantity required : 2 |
||||||
|
40 |
GU61712600 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
41 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
43 |
GU19748000 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
45 |
GU19707100 - CAPUCHON More informationQuantity required : 2 |
||||||
|
46 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 10 |
||||||
|
47 |
GU19733350 - PROTECTION DEMMAR More informationQuantity required : 1 |
||||||
|
48 |
GU98052440 - VIS More informationQuantity required : 1 |
||||||
|
49 |
GU98052435 - VIS M8X35 More informationQuantity required : 1 |
||||||
|
50 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
51 |
SPARK PLUG NGK B8ES "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR, MOTO-GUZZI V65, NEVADA, STRADA -847085- More informationQuantity required : 2 |
||||||
|
52 |
GU17712400 - ALTERNATEUR More informationQuantity required : 1 |
||||||
|
53 |
GU98620245 - VIS M5X45 More informationQuantity required : 3 |
||||||
|
54 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
55 |
GU17712454 - PORTE-BALAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/4/4/img/130944.jpg)
58 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" VALEO FOR MOTO-GUZZI -GU30730711- More informationQuantity required : 1 |
||||||
|
59 |
GU14730570 - KIT DE DEMARREUR More informationQuantity required : 1 |
||||||
|
60 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
61 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
62 |
GU95004205 - RONDELLE More informationQuantity required : 2 |
||||||
|
63 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 6 |
||||||
|
64 |
GU98054216 - VIS More informationQuantity required : 4 |
||||||
|
65 |
GU19748400 - CABLE BATTERIE More informationQuantity required : 1 |
