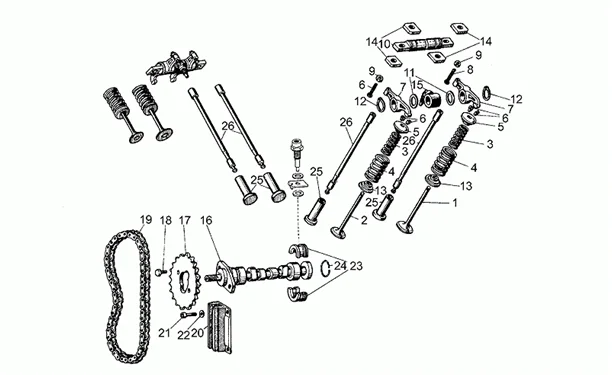

Vehicle Exploded View - MOTO-GUZZI V35 350 V50 Acc Elettronica 350-500 1977-1980
Moteur : 34.16 DISTRIBUTION
34.16 DISTRIBUTION
![]() 2 |
GU23036100 - SOUPAPE D ECHAPPEMEN More informationQuantity required : 2 |
||||||
![]() 4 |
GU61037500 - RESSORT More informationQuantity required : 4 |
||||||
![]() 5 |
GU61038000 - COUPELLE SUPERIEURE More informationQuantity required : 4 |
||||||
![]() 6 |
GU61038100 - DEMI-CLAVETTE More informationQuantity required : 8 |
||||||
![]() 7 |
82985R - BILANCIERE ASPIRAZIONE E SCARICO More informationQuantity required : 4 |
||||||
8 |
ROCKER ADJUSTER SCREW "PIAGGIO GENUINE PARTS" COMMON TO MOTO-GUZZI 2 VALVES -GU19034000- More informationQuantity required : 4 |
||||||
![]() 9 |
GU92602406 - ECROU M6X1 More informationQuantity required : 4 |
||||||
![]() 11 |
GU19032300 - RONDELLE D APPUI More informationQuantity required : 4 |
||||||
![]() 12 |
GU90271018 - BAGUE SEEGER More informationQuantity required : 4 |
||||||
![]() 15 |
2B000579 - MANICOTTO MANDATA OLIO AI BILANCIERI More informationQuantity required : 2 |
||||||
![]() 17 |
GU19054500 - ENGRENAGE More informationQuantity required : 1 |
||||||
![]() 18 |
GU61054900 - BOULON More informationQuantity required : 2 |
||||||
![]() 21 |
GU98682316 - VIS M6X16 More informationQuantity required : 2 |
||||||
![]() 22 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
![]() 23 |
CAMSHAFT HALF BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, V7, BREVA, V35, V60, V65 -GU19055700- More informationQuantity required : 2 |
||||||
24 |
GU90353029 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
![]() 25 |
GU19045861 - POUSSOIR More informationQuantity required : 4 |
