Vehicle Exploded View - MOTO-GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

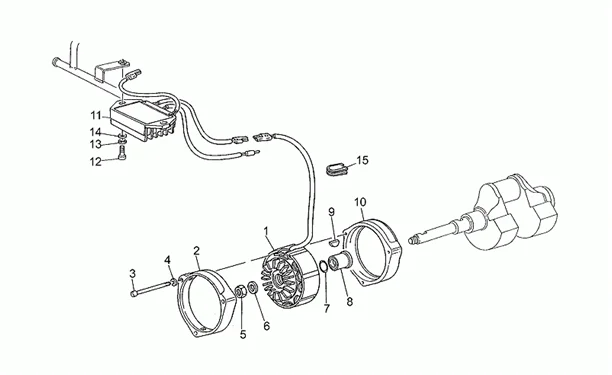

Moteur : 34.33 ALTERNATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_34.33.PNG)
1 |
GU30712460 - GENERATORE More informationQuantity required : 1 |
||||||
|
2 |
GU29711460 - CALOTTE AV. More informationQuantity required : 1 |
||||||
|
3 |
GU98620265 - VIS More informationQuantity required : 3 |
||||||
|
4 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 3 |
||||||
|
5 |
GU92606516 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
GU30714201 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/2/img/132222.jpg)
7 |
GU90706178 - JOINT TORIQUE 17,86X2,62 More informationQuantity required : 1 |
||||||
|
8 |
GU37712306 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/4/img/132374.jpg)
9 |
GU91600450 - CLAVETTE More informationQuantity required : 1 |
||||||
|
10 |
GU29711960 - CALOTTE ARRIERE CHROMEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/7/3/img/131873.jpg)
11 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, 1000 QUOTA, STRADA, V75, V10, V11, 1100 CALIFORNIA, SPORT -GU37703805- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
12 |
GU98682316 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
13 |
AP8152105 - RONDELLE More informationQuantity required : 2 |
||||||
|
14 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
