Vehicle Exploded View - MOTO-GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

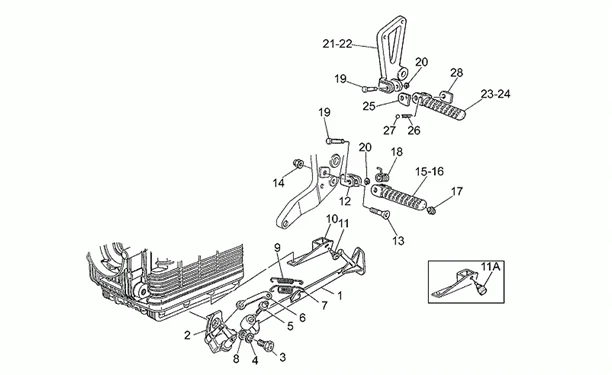

Chassis : 33.12 REPOSE-PIEDS BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_33.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/0/6/img/130706.jpg)
3 |
SCREW - FOR FOOTREST PLATE "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, V10, 1100 SPORT, V11 -GU30432801- More informationQuantity required : 1 |
||||||
4 |
GU95021114 - RONDELLE SPECIALE More informationQuantity required : 1 |
||||||
|
5 |
GU30433200 - VIS FIX.BEQUILLE More informationQuantity required : 1 |
||||||
|
6 |
GU30432700 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
7 |
SIDE STAND SPRING (EXTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, QUOTA, V10, 1100 SPORT, V11, 1200 STELVIO -GU30434001- More informationQuantity required : 1 |
||||||
|
8 |
GU95100521 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/1/1/img/130711.jpg)
9 |
CENTRAL STAND SPRING (INTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, QUOTA, V10, 1100 SPORT, V11, 1200 STELVIO -GU30434000- More informationQuantity required : 1 |
||||||
|
10 |
GU30433600 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
11 |
GU19705900 - TAMPON More informationQuantity required : 1 |
||||||
|
11 |
GU93180575 - TAMPON More informationQuantity required : 1 |
||||||
|
12 |
GU30442705 - SUPPORT More informationQuantity required : 2 |
||||||
|
13 |
GU98251040 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
14 |
GU92630110 - ECROU M10X1,5 More informationQuantity required : 2 |
||||||
|
15 |
GU30440705 - R-PIED PILOTE D More informationQuantity required : 1 |
||||||
|
16 |
GU30441805 - R-PIED PILOTE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/0/img/73460.jpg)
17 |
PROTECTIVE SCREW FOR FOOTREST"PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI/APRILIA RANGE -GU30441005- More informationQuantity required : 2 |
||||||
|
18 |
GU30441105 - RESSORT DE RETOUR More informationQuantity required : 2 |
||||||
|
19 |
GU30442205 - PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
20 |
005965 - ANNEAU S00596500 More informationQuantity required : 4 |
||||||
|
21 |
GU37444605 - SUPPORT REPOSE-PIEDS DTE More informationQuantity required : 1 |
||||||
|
22 |
GU37444705 - SUPPORT R-P.G More informationQuantity required : 1 |
||||||
|
23 |
GU30442405 - REP-PIEDS PASS.DTE More informationQuantity required : 1 |
||||||
|
24 |
GU30442805 - REP-P.PASS.GCHE More informationQuantity required : 1 |
||||||
|
25 |
GU30443105 - PLAQUE FDC R-PIED More informationQuantity required : 2 |
||||||
|
26 |
GU94321062 - RESSORT More informationQuantity required : 2 |
||||||
|
27 |
GU92295706 - BILLE More informationQuantity required : 2 |
||||||
|
28 |
GU30441605 - PLAQUETTE More informationQuantity required : 2 |
