Vehicle Exploded View - MOTO-GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

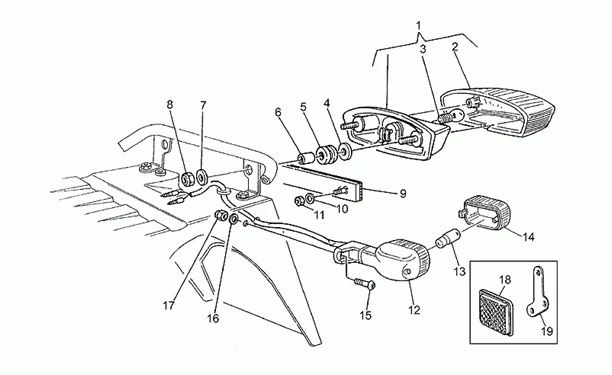

Chassis : 33.05 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_33.05.PNG)
1 |
GU31740960 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
GU31741760 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
3 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
||||||
|
4 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
5 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
6 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
7 |
GU95100123 - RONDELLE More informationQuantity required : 2 |
||||||
|
8 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
10 |
GU95129080 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
GU92602204 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
GU30750601 - CLIGNOTANT ARRIERE GOUCHE More informationQuantity required : 2 |
||||||
|
13 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
14 |
GU30753701 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
15 |
GU98230620 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU95100123 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
18 |
GU14781570 - CATADIOPTRE ARRIERE, ROUGE More informationQuantity required : 2 |
||||||
|
19 |
GU30781820 - SUPPORT CATADIOPTRE More informationQuantity required : 2 |
