Vehicle Exploded View - MOTO-GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

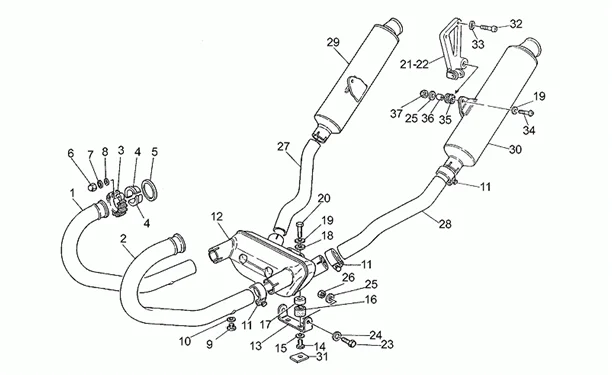

Chassis : 33.34 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_33.34.PNG)
2 |
GU37120906 - TUYAU ECHAPPEMENT GCHE More informationQuantity required : 1 |
||||||
|
4 |
GU37121205 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
5 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
6 |
GU92781081 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
7 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
8 |
GU95007208 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
GU98110007 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.JPG)
10 |
GU30109330 - JOINT More informationQuantity required : 2 |
||||||
|
11 |
GU30123400 - COLLIER More informationQuantity required : 6 |
||||||
|
12 |
GU37123905 - CHAMBRE DE DETENTE More informationQuantity required : 1 |
||||||
|
13 |
GU37127105 - SUPPORT CENTRAL POT More informationQuantity required : 1 |
||||||
|
14 |
GU98054412 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU95100256 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU93233030 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
17 |
GU30126700 - ENTRETOISE INFERIEUR More informationQuantity required : 2 |
||||||
|
18 |
GU30126701 - ENTRETOISE SUPERIEUR More informationQuantity required : 2 |
||||||
|
19 |
GU95100239 - RONDELLE More informationQuantity required : 4 |
||||||
|
20 |
GU98054430 - VIS More informationQuantity required : 2 |
||||||
|
21 |
GU37444605 - SUPPORT REPOSE-PIEDS DTE More informationQuantity required : 1 |
||||||
|
22 |
GU37444705 - SUPPORT R-P.G More informationQuantity required : 1 |
||||||
|
23 |
031117 - BOULON S03111700 More informationQuantity required : 2 |
||||||
|
24 |
GU95100239 - RONDELLE More informationQuantity required : 2 |
||||||
|
25 |
GU95100256 - RONDELLE More informationQuantity required : 4 |
||||||
|
26 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
||||||
|
27 |
GU30124700 - TUYAU D. More informationQuantity required : 1 |
||||||
|
27 |
GU37124707 - TUYAU D AVEC CATALYS. More informationQuantity required : 1 |
||||||
|
28 |
GU30124800 - TUYAU G. More informationQuantity required : 1 |
||||||
|
28 |
GU37124807 - TUYAU G AVEC CATALYS. More informationQuantity required : 1 |
||||||
|
29 |
GU30123001 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
30 |
GU30122905 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
30 |
GU30122901 - SILENCIEUX G More informationQuantity required : 1 |
||||||
|
31 |
GU95187008 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
32 |
GU98822420 - VIS More informationQuantity required : 4 |
||||||
|
33 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
|
34 |
GU98230835 - VIS M8X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/6/img/129206.jpg)
35 |
GU14103400 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
37 |
GU92630108 - ECROU More informationQuantity required : 2 |
