Vehicle Exploded View - MOTO-GUZZI SPORT 1100 Sport Carburatori 1100 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

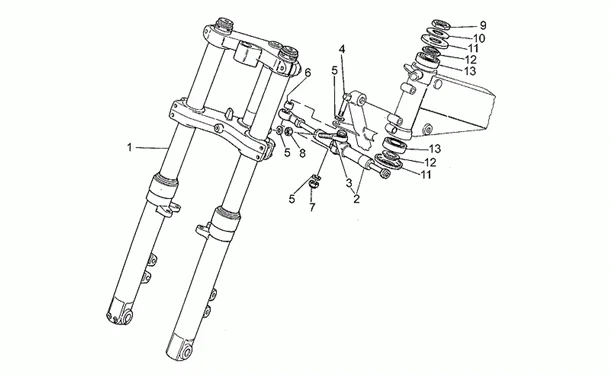

Chassis : 33.19 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/517/Sport_Carburatori_1100_1994-1996_33.19.PNG)
2 |
GU30530201 - AMORTISSEUR DE DIRECTION More informationQuantity required : 1 |
||||||
|
4 |
GU98620440 - VIS M8X40 More informationQuantity required : 1 |
||||||
|
5 |
GU95004208 - RONDELLE More informationQuantity required : 3 |
||||||
|
6 |
GU91180810 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
7 |
GU92630108 - ECROU More informationQuantity required : 1 |
||||||
|
8 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
9 |
GU92700241 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/8/9/img/130789.jpg)
10 |
GU30516500 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/1/img/129261.jpg)
11 |
STEERING DUST COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU14517000 - More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/6/0/img/129260.jpg)
12 |
GU14516700 - RONDELLE D'APPUI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/2/img/108532.jpg)
13 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI BREVIA, BELLAGIO, CALIFORNIA -GU92249225- More informationQuantity required : 2 |
