Vehicle Exploded View - APRILIA SONIC 50 H2O 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

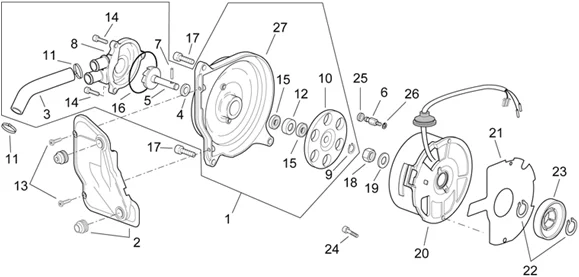

Moteur : 29.29 VOLANT - POMPE A EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/275/Sonic_50_H2O_1998-2008_29.29.PNG)
1 |
AP8206589 - CARTER DE VOLANT More informationQuantity required : 1 |
||||||
|
2 |
AP8206822 - COUVERCLE + TAMP.CAOUT. More informationQuantity required : 1 |
||||||
|
3 |
AP8206573 - TUYAU POMPE-CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/7/1/img/61071.jpg)
4 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50/50 A BOITE 1995>2000 -AP8509130- More informationQuantity required : 1 |
||||||
|
5 |
AP8206576 - PIVOT POMPE EAU+ROTOR More informationQuantity required : 1 |
||||||
|
6 |
AP8206842 - AXE ENTR.ROTOR POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/6/img/61066.jpg)
7 |
AP8508669 - ROULEAU More informationQuantity required : 1 |
||||||
|
8 |
AP8206580 - CORPS POMPE EAU GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/0/9/img/61009.jpg)
9 |
AP8501467 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 1 |
||||||
|
10 |
AP8206582 - ENTRA?NEMENT POUR ROTOR POMPE More informationQuantity required : 1 |
||||||
|
11 |
AP8206583 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/0/4/img/55904.jpg)
12 |
AP8206584 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
13 |
Vis |
||||||
|
14 |
AP8509211 - VIS More informationQuantity required : 3 |
||||||
|
15 |
AP8206585 - ROULEMENT More informationQuantity required : 2 |
||||||
|
16 |
AP8206586 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
17 |
AP8206508 - VIS More informationQuantity required : 3 |
||||||
|
18 |
AP8206183 - ECROU More informationQuantity required : 1 |
||||||
|
19 |
AP8206205 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/4/5/img/55845.jpg)
20 |
AP8206462 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
21 |
AP8206485 - JOINT STATOR VOLANT More informationQuantity required : 1 |
||||||
|
22 |
AP8206179 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 1 |
||||||
|
23 |
AP8206746 - ENGRENAGE MENANT POMPE HUILE More informationQuantity required : 1 |
||||||
|
24 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/9/4/img/55894.jpg)
25 |
AP8206572 - CAOUTCHOUC AXE ENTR.PPE More informationQuantity required : 1 |
||||||
|
26 |
AP8206192 - RONDELLE GROWER More informationQuantity required : 1 |
||||||
|
27 |
AP8206569 - CARTER DE VOLANT More informationQuantity required : 1 |
