Vehicle Exploded View - APRILIA SONIC 50 H2O 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

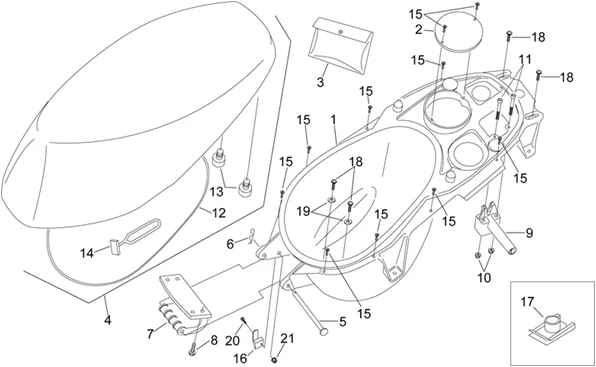

Chassis : 28.09 SELLE ET COMPART.P-CASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/275/Sonic_50_H2O_1998-2008_28.09.PNG)
1 |
AP8239297 - COMPART.P-CASQUE; More informationQuantity required : 1 |
||||||
|
2 |
AP8239354 - ABATT. JAUGE ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
AP8202131 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
4 |
AP8229441 - SELLE BLEU More informationQuantity required : 1 |
||||||
|
4 |
AP8229298 - SELLE NOIRE; More informationQuantity required : 1 |
||||||
|
4 |
AP8229277 - SELLE GRISE; More informationQuantity required : 1 |
||||||
|
4 |
AP8229316 - SELLE ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8229369 - SELLE NOIRE More informationQuantity required : 1 |
||||||
|
4 |
AP8229414 - SELLA NERA BICOLORE More informationQuantity required : 1 |
||||||
|
4 |
AP8229420 - SELLA BIC.ROSSO/NERO More informationQuantity required : 1 |
||||||
|
4 |
AP8229421 - SELLA BIC.NERO/NERO More informationQuantity required : 1 |
||||||
|
4 |
AP8229440 - SELLE ROUGE More informationQuantity required : 1 |
||||||
|
5 |
AP8221173 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
6 |
PIN FOR FUEL FILLER CAP "PIAGGIO GENUINE PART" PIAGGIO GILERA 50 SMT, RCR 2018> -AP8201673- More informationQuantity required : 1 |
||||||
|
7 |
AP8239090 - ATTACHE STRUCT.SELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
9 |
AP8202059 - SERRURE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
11 |
AP8150403 - VIS More informationQuantity required : 2 |
||||||
|
12 |
890508 - JOINT SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
13 |
AP8220349 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 2 |
||||||
|
14 |
AP8144154 - ELASTIQUE DE FIXATION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
15 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 5 |
||||||
|
16 |
AP8234094 - SUPPORT P-FUSIBLES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
17 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
18 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
19 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.JPG)
20 |
AP8152274 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
21 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
