Vehicle Exploded View - APRILIA SONIC 50 H2O 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

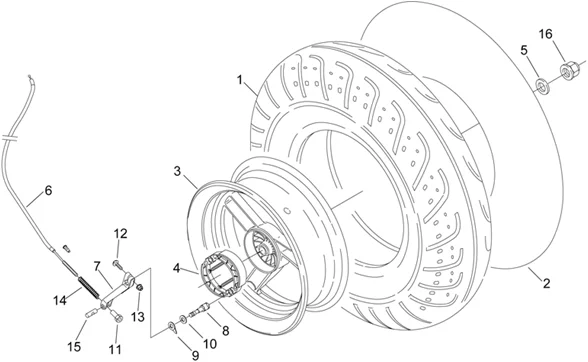

Chassis : 28.24 ROUE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/275/Sonic_50_H2O_1998-2008_28.24.PNG)
3 |
AP8208553 - ROUE AR NUE JAUNE More informationQuantity required : 1 |
||||||
|
3 |
AP8208636 - ROUE ARRIERE More informationQuantity required : 1 |
||||||
|
3 |
AP8208659 - ROUE AR NUE OR; More informationQuantity required : 1 |
||||||
|
3 |
AP8208745 - ROUE ARRIERE More informationQuantity required : 1 |
||||||
|
4 |
AP8213133 - SABOTS A RESS-PAIRE More informationQuantity required : 1 |
||||||
|
5 |
AP8150471 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/6/4/img/56564.jpg)
6 |
TRANSMISSION CABLE FOR REAR BRAKE "PIAGGIO GENUINE PART" APRILIA 50 SONIC 1998>2008 -AP8214174- More informationQuantity required : 1 |
||||||
|
7 |
AP8235004 - LEVIER DE FREIN AR; More informationQuantity required : 1 |
||||||
|
8 |
AP8213348 - CAME FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
9 |
AP8224011 - INDICATEUR USURE FREIN; More informationQuantity required : 1 |
||||||
|
10 |
AP8213373 - JOINT PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
11 |
AP8214200 - REGLAGE LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.JPG)
12 |
AP8152136 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/8/img/56388.jpg)
14 |
AP8213137 - RES. HELIC. COMPR More informationQuantity required : 1 |
||||||
|
15 |
AP8221120 - AXE FIX. CABLE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
16 |
AP8152244 - ECROU DAX BRID. More informationQuantity required : 1 |
