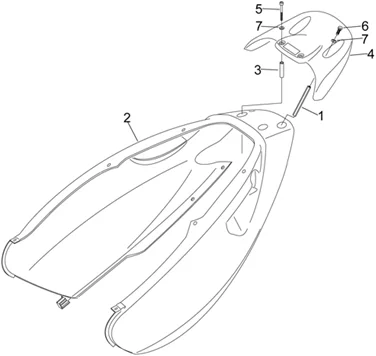

Vehicle Exploded View - APRILIA SONIC 50 H2O 1998-2008 APRILIA

Chassis : 28.11 CARROSSERIE ARRIÉRE - QU.CAR
Carrosserie arriére - Qu.Car
Search
AP8221263 - ENTRETOISE SPOILER;

1
P2R reference P2R reference 57035
Maker reference Maker reference AP8221263

AP8221263 - ENTRETOISE SPOILER;

More information

Quantity required : 2

AP8184063 - REAR COVER RED

2
P2R reference P2R reference 54880
Maker reference Maker reference AP8184063

AP8184063 - REAR COVER RED

More information

Quantity required : 1

AP8248006 - QUEUE, NOIR AP.;

2
P2R reference P2R reference 58480
Maker reference Maker reference AP8248006

AP8248006 - QUEUE, NOIR AP.;

More information

Quantity required : 1

AP8248020 - QUEUE, BLEU SOLID;

2
P2R reference P2R reference 58483
Maker reference Maker reference AP8248020

AP8248020 - QUEUE, BLEU SOLID;

More information

Quantity required : 1

AP8248029 - QUEUE, BLEU SOLID;

2
P2R reference P2R reference 58489
Maker reference Maker reference AP8248029

AP8248029 - QUEUE, BLEU SOLID;

More information

Quantity required : 1

AP8248939 - QUEUE, JAUNE CHR.;

2
P2R reference P2R reference 58698
Maker reference Maker reference AP8248939

AP8248939 - QUEUE, JAUNE CHR.;

More information

Quantity required : 1

AP8249802 - Q.CAREN. BLEU REEF;

2
P2R reference P2R reference 58869
Maker reference Maker reference AP8249802

AP8249802 - Q.CAREN. BLEU REEF;

More information

Quantity required : 1

AP8258367 - QUEUE, HOT RED;

2
P2R reference P2R reference 59159
Maker reference Maker reference AP8258367

AP8258367 - QUEUE, HOT RED;

More information

Quantity required : 1

AP8258376 - QUEUE, GRIS PELTRO;

2
P2R reference P2R reference 59165
Maker reference Maker reference AP8258376

AP8258376 - QUEUE, GRIS PELTRO;

More information

Quantity required : 1

AP8258976 - QUEUE, NOIR

2
P2R reference P2R reference 59549
Maker reference Maker reference AP8258976

AP8258976 - QUEUE, NOIR

More information

Quantity required : 1

AP8268233 - CODONE V.NERO APRILIA

2
P2R reference P2R reference 59942
Maker reference Maker reference AP8268233

AP8268233 - CODONE V.NERO APRILIA

More information

Quantity required : 1

AP8268427 - CODONE V.ROSSO FLUO N/DEC

2
P2R reference P2R reference 60060
Maker reference Maker reference AP8268427

AP8268427 - CODONE V.ROSSO FLUO N/DEC

More information

Quantity required : 1

AP8268434 - CODONE V.BIANCO APR.N/DEC.

2
P2R reference P2R reference 60066
Maker reference Maker reference AP8268434

AP8268434 - CODONE V.BIANCO APR.N/DEC.

More information

Quantity required : 1

AP8268560 - CODONE V.NERO DIABLO N/DEC

2
P2R reference P2R reference 60109
Maker reference Maker reference AP8268560

AP8268560 - CODONE V.NERO DIABLO N/DEC

More information

Quantity required : 1

AP8268731 - QUEUE, ROUGE

2
P2R reference P2R reference 60213
Maker reference Maker reference AP8268731

AP8268731 - QUEUE, ROUGE

More information

Quantity required : 1

AP8268743 - QUEUE, BLANC

2
P2R reference P2R reference 60224
Maker reference Maker reference AP8268743

AP8268743 - QUEUE, BLANC

More information

Quantity required : 1

AP8221262 - ENTRETOISE SPOILER;

3
P2R reference P2R reference 57034
Maker reference Maker reference AP8221262

AP8221262 - ENTRETOISE SPOILER;

More information

Quantity required : 2

AP8184064 - FRONT.LOWER PROTECTION BLACK

4
P2R reference P2R reference 54881
Maker reference Maker reference AP8184064

AP8184064 - FRONT.LOWER PROTECTION BLACK

More information

Quantity required : 1

AP8248007 - SPOILER NOIR AP.;

4
P2R reference P2R reference 58481
Maker reference Maker reference AP8248007

AP8248007 - SPOILER NOIR AP.;

More information

Quantity required : 1

AP8248021 - SPOILER BLEU SOLID;

4
P2R reference P2R reference 58484
Maker reference Maker reference AP8248021

AP8248021 - SPOILER BLEU SOLID;

More information

Quantity required : 1

AP8248030 - SPOILER GRIS BLADE;

4
P2R reference P2R reference 58490
Maker reference Maker reference AP8248030

AP8248030 - SPOILER GRIS BLADE;

More information

Quantity required : 1

AP8248940 - SPOILER, JAUNE CHR.;

4
P2R reference P2R reference 58699
Maker reference Maker reference AP8248940

AP8248940 - SPOILER, JAUNE CHR.;

More information

Quantity required : 1

AP8249803 - SPOILER, BLEU REEF;

4
P2R reference P2R reference 58870
Maker reference Maker reference AP8249803

AP8249803 - SPOILER, BLEU REEF;

More information

Quantity required : 1

AP8258368 - SPOILER HOT RED;

4
P2R reference P2R reference 59160
Maker reference Maker reference AP8258368

AP8258368 - SPOILER HOT RED;

More information

Quantity required : 1

AP8258377 - SPOILER GRIS PELTRO;

4
P2R reference P2R reference 59166
Maker reference Maker reference AP8258377

AP8258377 - SPOILER GRIS PELTRO;

More information

Quantity required : 1

AP8258978 - SPOILER NOIR AP.

4
P2R reference P2R reference 59551
Maker reference Maker reference AP8258978

AP8258978 - SPOILER NOIR AP.

More information

Quantity required : 1

AP8268235 - SPOILER V.NERO DIABLO

4
P2R reference P2R reference 59944
Maker reference Maker reference AP8268235

AP8268235 - SPOILER V.NERO DIABLO

More information

Quantity required : 1

AP8268428 - SPOILER V.NERO DIABLO N/DEC.

4
P2R reference P2R reference 60061
Maker reference Maker reference AP8268428

AP8268428 - SPOILER V.NERO DIABLO N/DEC.

More information

Quantity required : 1

AP8150342 - VIS

5
P2R reference P2R reference 71865
Maker reference Maker reference AP8150342

AP8150342 - VIS

More information

Quantity required : 2

AP8150220 - VIS

6
P2R reference P2R reference 71841
Maker reference Maker reference AP8150220

AP8150220 - VIS

More information

Quantity required : 2

AP8150014 - RONDELLE

7
P2R reference P2R reference 71807
Maker reference Maker reference AP8150014

AP8150014 - RONDELLE

More information

Quantity required : 4
