Vehicle Exploded View - APRILIA SONIC 50 H2O 1998-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

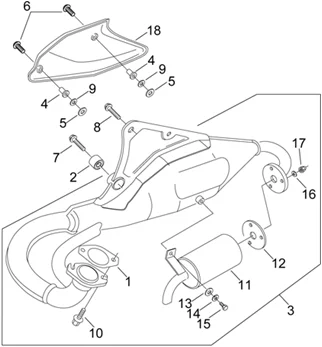

Chassis : 28.21 GROUPE ECHAPPEMENT NORMALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/275/Sonic_50_H2O_1998-2008_28.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
1 |
AP8219212 - JOINT POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
2 |
AP8220357 - SILENTBLOC POT VERT More informationQuantity required : 1 |
||||||
|
3 |
AP8219398 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
AP8219399 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
AP8219424 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
4 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
5 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
7 |
AP8152289 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
8 |
AP8152287 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.JPG)
9 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
10 |
AP8150521 - VITE TCEI M6X16 INOX More informationQuantity required : 2 |
||||||
|
11 |
AP8219433 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
13 |
AP8150017 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
AP8152154 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
AP8152112 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/8/img/50868.JPG)
16 |
AP8150380 - RONDELLE More informationQuantity required : 3 |
||||||
|
17 |
AP8150474 - ECROU BORGNE INOX More informationQuantity required : 3 |
||||||
|
18 |
AP8219425 - PROTECTION POT D'ECHAPPEMENT More informationQuantity required : 1 |
