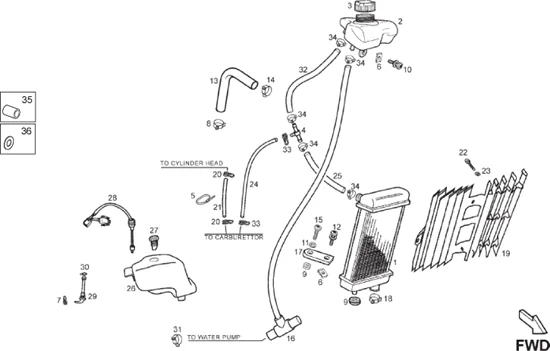

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM DRD X-Treme 2T E2 2014-2017 (EMEA)

	P2R reference	69933
	Maker reference	2B0024585

COOLING RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 RX, SX 2011> -2B0024585

	P2R reference	64874
	Maker reference	00H03810501

COOLANT TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H03810501

	P2R reference	64858
	Maker reference	00H03802472

COOLANT TANK CAP "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 RS, SX, RX -00H03802472

	P2R reference	69964
	Maker reference	862541

"Y"UNION-RADIATOR TO COOLANT TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX 2011>/LAVERDA 50 SM 2019> -862541

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901

	P2R reference	71158
	Maker reference	AP8101722

AP8101722 - COLLIER CLIC

	P2R reference	63673
	Maker reference	000089150205

SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020

	P2R reference	151683
	Maker reference	AP8152278

AP8152278 - VIS BRIDE M6X16

	P2R reference	63883
	Maker reference	00D01500552

00D01500552 - CUVETTE

	P2R reference	71815
	Maker reference	AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044

	P2R reference	69857
	Maker reference	86138R

COOLANT HOSE (FROM COOLANT TANK TO CYLINDER HEAD) "PIAGGIO GENUINE PART" GILERA 50 SMT 2011>, RCR/APRILIA 50 SX, RX 2006> -86138R

	P2R reference	45123
	Maker reference	AP8101927

AP8101927 - COLLIER CLIC

	P2R reference	71942
	Maker reference	AP8152279

AP8152279 - VIS BRIDE

	P2R reference	151776
	Maker reference	2B004389

COOLANT HOSE - FROM RADIATOR TO PUMP "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>/APRILIA 50 SX, RX 2011> ("T" SHAPED WITH RIGID HOSE) -2B004389

	P2R reference	64024
	Maker reference	00G02200692

RADIATOR SUPPORT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G02200692

	P2R reference	64852
	Maker reference	00H03801751

00H03801751 - ABRAZ.NORMA COBRA 22/8 W4

	P2R reference	151094
	Maker reference	2B005365

RADIATOR GRID "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -2B005365

	P2R reference	64241
	Maker reference	00H00400501

00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE

	P2R reference	64853
	Maker reference	00H03801961

COOLANT HOSE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03801961

	P2R reference	63687
	Maker reference	000111413005

SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	69966
	Maker reference	862543

862543 - TUYAU

	P2R reference	69967
	Maker reference	862544

COOLANT HOSE - FROM RADIATOR TO 3 WAY CONNECTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -862544

	P2R reference	64826
	Maker reference	00H03704081

OIL TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H03704081

	P2R reference	63919
	Maker reference	00F03710241

OIL TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00F03710241

	P2R reference	158941
	Maker reference	2D000561

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS 2011>2020 -2D000561

	P2R reference	71216
	Maker reference	AP8104071

FUEL TANK UNION "PIAGGIO GENUINE PART" APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJITO -AP8104071

	P2R reference	70716
	Maker reference	879888

FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888

	P2R reference	45123
	Maker reference	AP8101927

AP8101927 - COLLIER CLIC

	P2R reference	69965
	Maker reference	862542

862542 - TUYAU

	P2R reference	64241
	Maker reference	00H00400501

00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE

	P2R reference	64108
	Maker reference	00G03801701

00G03801701 - BRIDE TUBE RESPIRATION R?SERVO

	P2R reference	71482
	Maker reference	AP8121697

AP8121697 - RESSORT A GODET

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001
