Vehicle Exploded View - DERBI SENDA SM 50 Senda SM DRD X-Treme 2T E2 2014-2017 (EMEA)

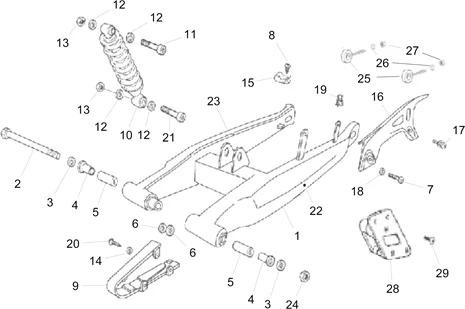

Chassis : 66.03 FOURCHE ARRIERE - AMORTISSEUR

	P2R reference	72851
	Maker reference	2B004345600WGB

REAR SUSPENSION ARM "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2011> -2B004345600WGB

More information

Quantity required : 1

	P2R reference	64484
	Maker reference	00H013042025

REAR WHEEL AXLE/SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> APRILIA 50 SX, RX 2006> Ø 12 MM -00H013042025

More information

Quantity required : 1

	P2R reference	71909
	Maker reference	AP8152018

AP8152018 - RONDELLE FER PLATE

More information

Quantity required : 0

	P2R reference	63630
	Maker reference	000025032305

SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002503230

More information

Quantity required : 0

	P2R reference	64217
	Maker reference	00H00301401

SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00301401

More information

Quantity required : 0

	P2R reference	63879
	Maker reference	00D01300192

WASHER FOR MOTOR SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01300192

More information

Quantity required : 0

	P2R reference	71864
	Maker reference	AP8150340

AP8150340 - VIS

More information

Quantity required : 0

	P2R reference
	Maker reference	000110413005

	P2R reference	64620
	Maker reference	00H01803331

CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT 2003>, RCR 2003>/APRILIA 50 SX-RX 2006> -00H01803331

More information

Quantity required : 0

	P2R reference	70281
	Maker reference	8670020001

8670020001 - AMORTISSEUR

More information

Quantity required : 0

	P2R reference	64230
	Maker reference	00H00303892

00H00303892 - BOULON TETE HEX. M12 175X58

More information

Quantity required : 0

	P2R reference	71482
	Maker reference	AP8121697

AP8121697 - RESSORT A GODET

More information

Quantity required : 0

	P2R reference	63716
	Maker reference	000231120005

NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000

More information

Quantity required : 0

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

More information

Quantity required : 0

	P2R reference	70044
	Maker reference	864114

864114 - BRIDA FIJ. CABLE D12.70 NEGRA

More information

Quantity required : 0

	P2R reference	64557
	Maker reference	00H01508181

CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01508181

More information

Quantity required : 0

	P2R reference	71913
	Maker reference	AP8152108

AP8152108 - VIS

More information

Quantity required : 0

	P2R reference	71927
	Maker reference	AP8152181

AP8152181 - RONDELLE FER PLATE

More information

Quantity required : 0

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 0

	P2R reference	63687
	Maker reference	000111413005

SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300

More information

Quantity required : 0

	P2R reference	64216
	Maker reference	00H00300912

00H00300912 - VIS FIXATION AMORTISSEUR

More information

Quantity required : 0

	P2R reference	70142
	Maker reference	8657130001

8657130001 - CALCA BASCULANTE DLS IZ.09

More information

Quantity required : 0

	P2R reference	70141
	Maker reference	8657120001

DECAL- "DLS" ON SWINGING ARM "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -8657120001

More information

Quantity required : 0

	P2R reference	63768
	Maker reference	002621200325

NUT - INDESSERABLE M12X150 FOR REAR WHEEL/ENGINE SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00262120032

More information

Quantity required : 0

	P2R reference	64486
	Maker reference	00H01305171

WHEEL TENSIONER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -00H01305171

More information

Quantity required : 0

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001

More information

Quantity required : 0

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060

More information

Quantity required : 0

	P2R reference	69853
	Maker reference	86133R

CHAIN GUIDE "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX/DERBI 50 SENDA (COMPLETE) -86133R

More information

Quantity required : 1

	P2R reference	71832
	Maker reference	AP8150177

AP8150177 - RONDELLE

More information

Quantity required : 3
