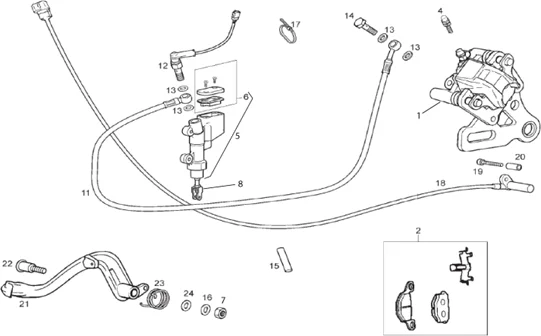

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM DRD X-Treme 2T E2 2014-2017 (EMEA)

	P2R reference	70265
	Maker reference	866956

REAR BRAKE CALIPER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>2017/APRILIA 50 SX, RX 2011>2017 -866956

	P2R reference	70307
	Maker reference	867242

BRAKE PADS - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA SX-RX 2011> (PAIR) -867242

	P2R reference	70305
	Maker reference	867240

SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240

	P2R reference	70264
	Maker reference	866955

REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX 2011> -866955

	P2R reference	70306
	Maker reference	867241

867241 - KIT COUVERCLE POMPE

	P2R reference	71959
	Maker reference	AP8152300

NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300

	P2R reference	64404
	Maker reference	00H01103611

REAR BRAKE ROD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX (VENDU AVEC AXE DE FIXATION) -00H01103611

	P2R reference	70267
	Maker reference	866958

REAR BRAKE HOSE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/APRILIA 50 SX, RX 2011>/LAVERDA 50 SM 2019> -866958

	P2R reference	64372
	Maker reference	00H01001701

STOP LIGHT SWITCH "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01001701

	P2R reference	70303
	Maker reference	867238

BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238

	P2R reference	70302
	Maker reference	867237

867237 - RACCORD

	P2R reference	70061
	Maker reference	864587

864587 - PROTECTOR GUIA CABLES MUL125

	P2R reference	71387
	Maker reference	AP8120178

AP8120178 - JOINT TORIQUE

	P2R reference	71411
	Maker reference	AP8120657

AP8120657 - COLLIER

	P2R reference	70025
	Maker reference	863307

SPEED SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT 2011>, RCR 2011>/APRILIA 50 SX 2011>, RX 2011> -863307

	P2R reference	71916
	Maker reference	AP8152136

AP8152136 - VIS

	P2R reference	70068
	Maker reference	864826

864826 - CASQ.TOPE CAPTADOR MUL125 CAFE

	P2R reference	69950
	Maker reference	86239R

REAR BRAKE PEDAL "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA SX, RX -86239R

	P2R reference	64392
	Maker reference	00H01100172

SCREW - FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01100172

	P2R reference	151763
	Maker reference	2B005020

RETURN SPRING FOR REAR BRAKE PEDAL "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -2B005020

	P2R reference	63655
	Maker reference	000055275405

SPACER- FOR REAR BRAKE COMMAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00005527540
