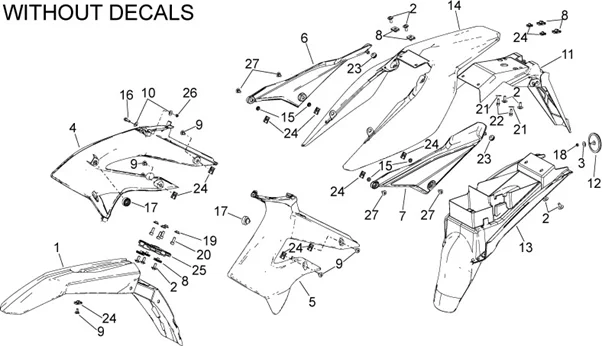

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM DRD X-Treme 2T E2 2014-2017 (EMEA)

	P2R reference	70250
	Maker reference	86693000W0N

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50 SMT2011>2012, RCR 2011>2015/APRILIA 125 SX 2018> BLACK -86693000W0N

	P2R reference	70249
	Maker reference	86693000W0B

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2013> WHITE -86693000W0B

	P2R reference	71933
	Maker reference	AP8152246

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246

	P2R reference	71806
	Maker reference	AP8150013

AP8150013 - RONDELLE

	P2R reference	70240
	Maker reference	86692500W0N6

RIGHT FRONT SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> BLACK -86692500W0N6

	P2R reference	126493
	Maker reference	86692500W0B

FRONT SIDE COVER - RIGHT - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> WHITE -86692500W0B

	P2R reference	126493
	Maker reference	86692500W0B

FRONT SIDE COVER - RIGHT - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> WHITE -86692500W0B

	P2R reference	126494
	Maker reference	86692600W0B

FRONT SIDE COVER - LEFT - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> WHITE -86692600W0B

	P2R reference	70242
	Maker reference	86692600W0N6

LEFT FRONT SIDE PANEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> BLACK -86692600W0N6

	P2R reference	70244
	Maker reference	866927

RIGHT SIDE CLOSURE (REAR) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866927

	P2R reference	70245
	Maker reference	866928

LEFT SIDE CLOSURE(REAR) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866928

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	72707
	Maker reference	B016455

B016455 - VIS

	P2R reference	63736
	Maker reference	000470304005

CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400

	P2R reference	64308
	Maker reference	00H00718341

MUDGUARD/LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00718341

	P2R reference	72325
	Maker reference	AP8224164

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164

	P2R reference	70278
	Maker reference	866998

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -866998

	P2R reference	70246
	Maker reference	86692900W0B6

REAR MUDGUARD - WHITE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011>/DERBI 50 DRD-RACING 2011> 86692900W0B6

	P2R reference	70247
	Maker reference	86692900W0N6

REAR MUDGUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> BLACK -86692900W0N6

	P2R reference	65337
	Maker reference	00N01000821

SPACER- FOR REAR SIDE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00N01000821

	P2R reference	71940
	Maker reference	AP8152274

AP8152274 - VIS BRIDE

	P2R reference	65025
	Maker reference	00H06101101

RUBBER SPACER FOR LATERAL SHIELD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H06101101

	P2R reference	71839
	Maker reference	AP8150204

AP8150204 - ECROU AUTOFR. BAS

	P2R reference	72597
	Maker reference	AP9100053

AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

	P2R reference	72330
	Maker reference	AP8224470

AP8224470 - VIS

	P2R reference	71393
	Maker reference	AP8120405

AP8120405 - CAOUTCHOUC

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	70253
	Maker reference	866932

MUDGUARD SUPPORT- FRONT "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -866932

	P2R reference	71963
	Maker reference	AP8152306

AP8152306 - ECROU AUTOBLOQU.

	P2R reference	111532
	Maker reference	658844

658844 - VIS
