Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Carb 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

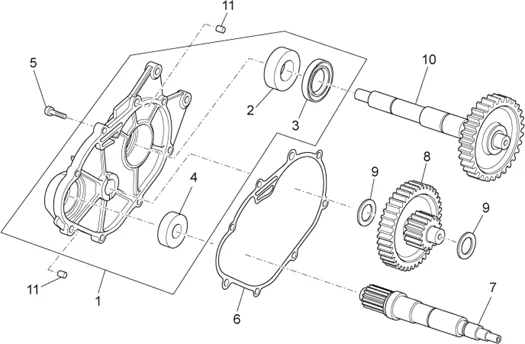

Moteur : 29.53 TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/607/Scarabeo_125_Light_Carb_2007-2010_29.53.PNG)
1 |
852756 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
AP4GAN000154 - ROULEMENT 6302 C3 More informationQuantity required : 1 |
||||||
|
3 |
AP4EBN000167 - CIRCLIPS 30X52X7 More informationQuantity required : 1 |
||||||
|
4 |
AP4GAN000155 - ROULEMENT 6205 More informationQuantity required : 1 |
||||||
|
5 |
AP4ADN000012 - VIS More informationQuantity required : 8 |
||||||
|
6 |
AP3NVA000838 - JOINT POUR MOYEAU More informationQuantity required : 1 |
||||||
|
7 |
AP3NBA000822 - ARBRE POULIE More informationQuantity required : 1 |
||||||
|
8 |
AP3NCA000847 - PIGNON MOYEU More informationQuantity required : 1 |
||||||
|
8 |
AP3NCA000851 - PIGNON MOYEU More informationQuantity required : 1 |
||||||
|
9 |
AP3NAA000357 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
10 |
AP3NDA000849 - AXE ROUE AVT More informationQuantity required : 1 |
||||||
|
10 |
AP3NDA000853 - AXE ROUE AVT More informationQuantity required : 1 |
||||||
|
11 |
AP3FCN000126 - BAGUE 10X13 More informationQuantity required : 2 |
