Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Carb 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

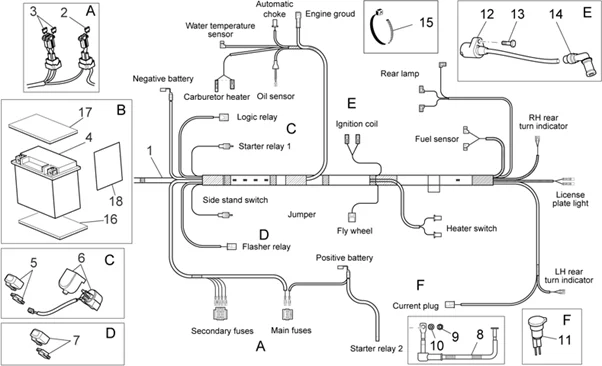

Chassis : 28.40 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/607/Scarabeo_125_Light_Carb_2007-2010_28.40.PNG)
1 |
JC36600X92000 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
2 |
JC36711X92000 - FUSIBLE More informationQuantity required : 2 |
||||||
|
3 |
JC36712X92000 - FUSIBLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/6/img/67276.jpg)
4 |
583158 - BATTERIE 12V/12A YUASA YTX12-BS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/1/2/5/img/63125.jpg)
5 |
RELAY "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>2010 -JC38630X92000 More informationQuantity required : 1 |
||||||
|
6 |
JC31810X92000 - RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
7 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235 More informationQuantity required : 1 |
||||||
|
8 |
JC36611X92000 - CABLE More informationQuantity required : 1 |
||||||
|
9 |
JCB30100600JN00 - ECROU M6 More informationQuantity required : 1 |
||||||
|
10 |
JCD21200600CN00 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
JC33700X92000 - PRISE COURANT More informationQuantity required : 1 |
||||||
|
12 |
AP8127335 - BOBINE H.T. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
13 |
AP8152274 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/1/img/67891.jpg)
14 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO 2007>2010 -640637 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
15 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 20 |
||||||
|
16 |
JC33651X92000 - PROTECTION More informationQuantity required : 1 |
||||||
|
17 |
JC33653X92000 - PROTECTION More informationQuantity required : 1 |
||||||
|
18 |
JC33652X92000 - PROTECTION More informationQuantity required : 2 |
