Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Carb 2007-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

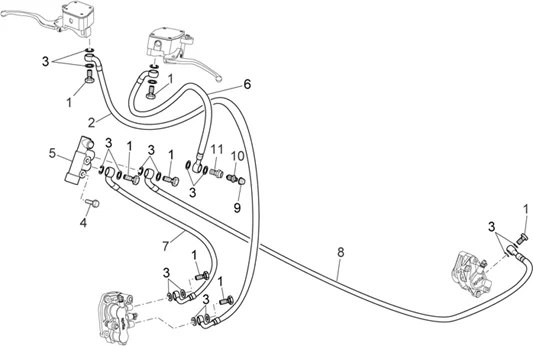

Chassis : 28.22 SYS.FREIN AVANT/ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/607/Scarabeo_125_Light_Carb_2007-2010_28.22.PNG)
1 |
JC59491X92000 - VIS More informationQuantity required : 6 |
||||||
|
2 |
JC59480X92000 - TUBE FREIN AV; More informationQuantity required : 1 |
||||||
|
3 |
JC59492X92000 - RONDELLE More informationQuantity required : 16 |
||||||
|
4 |
JCA20106030JN00 - VIS M6X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
5 |
BRAKE VALVE "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738 More informationQuantity required : 1 |
||||||
|
6 |
JC69410X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
7 |
JC69420X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
8 |
JC69430X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
9 |
AP8113761 - PURGE AIR; More informationQuantity required : 1 |
||||||
|
10 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
11 |
AP8113762 - VIS PERCEE; More informationQuantity required : 1 |
