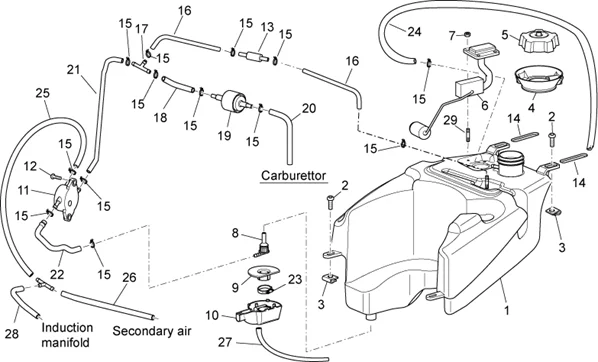

Chassis : 28.25 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/607/Scarabeo_125_Light_Carb_2007-2010_28.25.PNG)
1 |
JC44110X92010 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
JC44110X92000 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
JC02142X06163 - VIS TBEI More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
||||||
|
4 |
JC44511X92000 - CUVE INFERIEURE CARBUR. More informationQuantity required : 1 |
||||||
|
5 |
JC44200X92000 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
6 |
JC34810X92000 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
|
7 |
JCB51100500JN00 - ECROU M5 More informationQuantity required : 4 |
||||||
|
8 |
JC44330X92000 - RACCORD More informationQuantity required : 1 |
||||||
|
9 |
JC44431X92000 - SUPPORT More informationQuantity required : 1 |
||||||
|
10 |
JC44421X92000 - CUVE INFERIEURE CARBUR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
11 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903 More informationQuantity required : 1 |
||||||
|
12 |
JC02142X06163 - VIS TBEI More informationQuantity required : 2 |
||||||
|
13 |
AP8104251 - SOUPAPE DE RETENUE More informationQuantity required : 1 |
||||||
|
14 |
JC09404X06431 - COLLIER0 More informationQuantity required : 2 |
||||||
|
15 |
JC44491X92000 - COLLIER More informationQuantity required : 22 |
||||||
|
16 |
JC44441X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
17 |
JC44611X92000 - RACCORD More informationQuantity required : 1 |
||||||
|
18 |
JC44445X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
19 |
JC44310X92000 - FILTRE More informationQuantity required : 1 |
||||||
|
20 |
JC44446X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
21 |
JC44444X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
22 |
JC44443X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
23 |
JC09402X92000 - COLLIER More informationQuantity required : 1 |
||||||
|
24 |
JC44442X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
25 |
JC44451X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
26 |
JC44452X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
27 |
JC44447X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
28 |
JC44453X92000 - TUYAU More informationQuantity required : 1 |
||||||
|
29 |
JCK1036A5018J - VIS SANS T?TE More informationQuantity required : 4 |
