Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

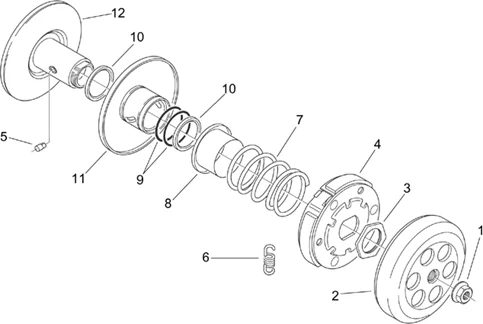

Moteur : 29.38 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_29.38.PNG)
1 |
AP8206829 - ECROU More informationQuantity required : 1 |
||||||
|
4 |
AP8106830 - EMBRAYAGE CENTRIFUGE COMPLET More informationQuantity required : 1 |
||||||
|
5 |
AP8206198 - ROULEAU GUIDE-VARIATEUR More informationQuantity required : 2 |
||||||
|
6 |
AP8106832 - RES.RAP.SABOTS EMB. More informationQuantity required : 3 |
||||||
|
8 |
AP8106834 - RONDELLE RESSORT VARIATEUR More informationQuantity required : 1 |
||||||
|
10 |
AP8206200 - JOINT SPI More informationQuantity required : 2 |
||||||
|
11 |
AP8206158 - POULIE SEC.MOBILE More informationQuantity required : 1 |
||||||
|
12 |
AP8206157 - POULIE SEC.FIXE More informationQuantity required : 1 |
