Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

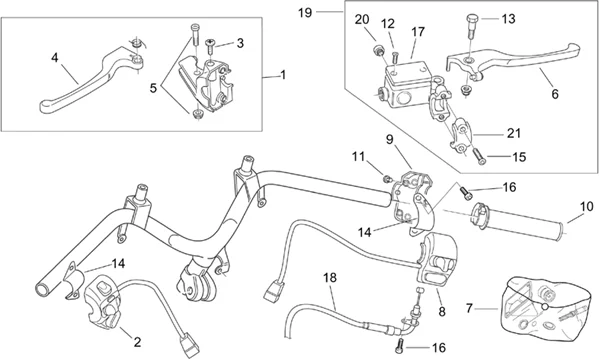

Chassis : 28.20 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_28.20.PNG)
1 |
AP8118568 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
2 |
AP8224282 - DEVIO GCHE+CABL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.JPG)
3 |
B016808 - VIS M5X20 More informationQuantity required : 2 |
||||||
|
3 |
B016808 - VIS M5X20 More informationQuantity required : 2 |
||||||
|
4 |
AP8218329 - LEVIER GCHE POLI; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/7/img/56647.jpg)
6 |
FRONT BRAKE LEVER- GRIMECA "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO, RALLY, SR, AMICO, 125 LEONARDO -AP8218273- More informationQuantity required : 1 |
||||||
|
7 |
AP8113636 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
8 |
AP8224281 - DEVIO DTE+CABL. More informationQuantity required : 1 |
||||||
|
9 |
AP8118569 - COUVERCLE DEVIATEUR FEUX D; More informationQuantity required : 1 |
||||||
|
10 |
AP8218214 - TUYAU GAZ SANS MANETTE; More informationQuantity required : 1 |
||||||
|
11 |
B016808 - VIS M5X20 More informationQuantity required : 2 |
||||||
|
11 |
B016808 - VIS M5X20 More informationQuantity required : 2 |
||||||
|
12 |
AP8221200 - VIS COUVERCLE POMPE More informationQuantity required : 2 |
||||||
|
13 |
AP8221231 - PIVOT DE LEVIER FREIN AV. More informationQuantity required : 1 |
||||||
|
14 |
AP8118570 - CAVALIER; More informationQuantity required : 1 |
||||||
|
15 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
||||||
|
17 |
AP8213475 - COUVERCLE POMPE; More informationQuantity required : 1 |
||||||
|
18 |
AP8114402 - CABLE GAZ; More informationQuantity required : 1 |
||||||
|
19 |
AP8213434 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
20 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
21 |
AP8113637 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
