Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

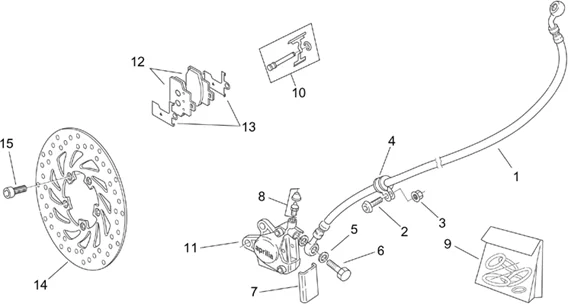

Chassis : 28.26 PINCE FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_28.26.PNG)
1 |
AP8213355 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 1 |
||||||
|
3 |
AP8150333 - ECROU SERPRESS More informationQuantity required : 1 |
||||||
|
4 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
|
7 |
AP8213224 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
|
8 |
AP8113321 - PURGE+CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
||||||
|
10 |
AP8213461 - GOUJON+RESSORT PINCE; More informationQuantity required : 1 |
||||||
|
11 |
AP8113858 - PINCE FREIN AV More informationQuantity required : 1 |
||||||
|
12 |
AP8213460 - PLAQUETTES-PAIRE; More informationQuantity required : 1 |
||||||
|
13 |
NO-NOISE INSERT FOR BRAKE PADS -AP8113677- More informationQuantity required : 1 |
||||||
|
14 |
AP8213381 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
|
15 |
AP8208543 - VIS More informationQuantity required : 5 |
