Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

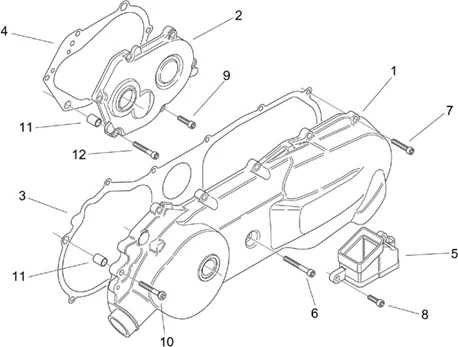

Moteur : 29.35 COUVERCLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_29.35.PNG)
1 |
AP8510780 - COUVERCLE DEMARRAGE; More informationQuantity required : 1 |
||||||
|
2 |
AP8510797 - COUVERCLE TRANSMISSION More informationQuantity required : 1 |
||||||
|
3 |
AP8510781 - JOINT COUVERCLE ALL.; More informationQuantity required : 1 |
||||||
|
6 |
AP8206498 - VIS More informationQuantity required : 1 |
||||||
|
8 |
AP8206495 - VIS AVEC RONDELLES More informationQuantity required : 2 |
||||||
|
9 |
AP8502567 - VIS More informationQuantity required : 1 |
||||||
|
10 |
AP8206497 - VIS More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/0/2/img/55702.jpg)
11 |
AP8206170 - GOUPILLE COUVERCLE More informationQuantity required : 2 |
||||||
|
12 |
AP8502564 - VIS More informationQuantity required : 1 |
