Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

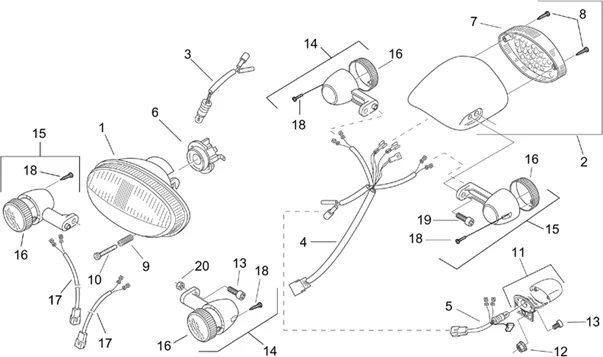

Chassis : 28.28 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_28.28.PNG)
1 |
AP8124711 - PHARE AVANT; More informationQuantity required : 1 |
||||||
|
2 |
AP8224313 - FEU ARRIERE; More informationQuantity required : 1 |
||||||
|
3 |
AP8124809 - CABLAGE FEU AV; More informationQuantity required : 1 |
||||||
|
4 |
AP8212550 - CABLAGE FEU/CLIGN.AR; More informationQuantity required : 1 |
||||||
|
5 |
AP8124873 - CABLAGE LUMIERE PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/2/7/img/57227.jpg)
6 |
BULB HOLDER - (STD BA20D) "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO -AP8224041- More informationQuantity required : 1 |
||||||
|
7 |
AP8212679 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/3/img/46923.jpg)
9 |
AP8121710 - RES. HELIC. COMPR More informationQuantity required : 1 |
||||||
|
10 |
AP8150475 - VIS More informationQuantity required : 1 |
||||||
|
11 |
AP8124899 - FEU PLAQUE IMM. GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
12 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
13 |
AP8150252 - VIS More informationQuantity required : 3 |
||||||
|
14 |
AP8124882 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 1 |
||||||
|
15 |
AP8124883 - CLIGNOT.AV.DR./ARR.GA. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.JPG)
16 |
AP8212680 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/7/img/56297.jpg)
17 |
WIRING FOR FRONT FLASHERS "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO, SR H2O -AP8212698- More informationQuantity required : 2 |
||||||
|
18 |
AP8224268 - VIS More informationQuantity required : 4 |
||||||
|
19 |
AP8224267 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/6/img/50826.jpg)
20 |
AP8150025 - ECROU More informationQuantity required : 2 |
