Vehicle Exploded View - GILERA RUNNER 50 SP 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

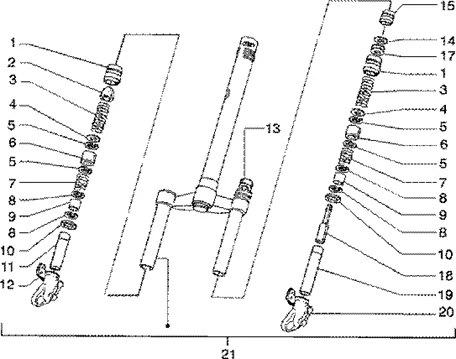

Suspensions-roues : T41 FOURCHE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/655/Runner_50_SP_1998-2005_T41.PNG)
3 |
561925 - RESSORT More informationQuantity required : 2 |
||||||
|
5 |
561922 - CLIPS More informationQuantity required : 4 |
||||||
|
8 |
561919 - CLIPS More informationQuantity required : 4 |
||||||
|
9 |
274468 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/0/img/67050.jpg)
10 |
FORK OIL SEAL "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -564236- More informationQuantity required : 2 |
||||||
|
11 |
561916 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
17 |
494694 - ECROU More informationQuantity required : 1 |
||||||
|
21 |
600858 - FOURCHE More informationQuantity required : 1 |
